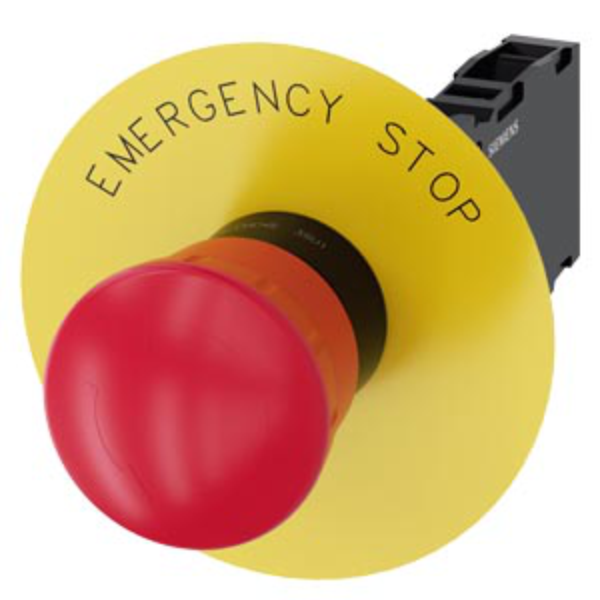

Emergency stop mushroom pushbutton, 22 mm, round, plastic, red, 1 NO + 1 NC
SKU: 3SU1100-1HB20-1FG0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The EMERGENCY STOP mushroom pushbuttons SIRIUS ACT in accordance with EN ISO 13850 for controlling safety-related applications cannot be overridden.
EMERGENCY STOP mushroom pushbutton, 22 mm, round, plastic, red, 40 mm, positive latching.
Acc. to EN ISO 13850, rotate-to-unlatch, with yellow backing plate.
Inscription: EMERGENCY STOP, with holder, 1 NO+1 NC, screw terminal.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SIRIUS ACT.
Product designation: Emergency stop mushroom pushbutton.
Design of the product: Complete unit.
Product type designation: 3SU1.
Product line: Plastic, black, 22 mm.
Number of command points: 1.
Insulation voltage rated value: 500 V.
Type of voltage of the operating voltage: AC/DC.
Protection class: IP66, IP67, IP69 (IP69K).
Protection class of the terminal: IP20, Clamping screw tightened.
Terminal current: 10 A.
Product component front ring: no.
Material of holder: Plastic.
Number of LED modules: 0.
Actuator:
Design of the actuating element: Positive latching.
Colour of the actuating element: Red.
Material of the actuating element: Plastic.
Shape of the actuating element: Round.
Outer diameter of the actuating element: 40 mm.
Number of contact modules: 1.
Type of unlocking device: Rotate-to-unlatch mechanism.
Auxiliary circuit:
Design of the contact of the auxiliary contacts: Silver alloy.
Number of NC contacts for the auxiliary contact: 1.
Number of NO contacts for the auxiliary contact: 1.
Ambient temperature:
During operation: -25 - +70°C.
During storage: -40 - +80°C.
Installation/Mounting/Dimensions:
Fastening method: Front plate mounting.
Height: 40 mm.
Width: 30 mm.
Shape of the installation opening: Round.
Mounting diameter: 22.3 mm.
Mounting height: 46.4 mm.
Installation width: 75 mm.
Installation depth: 70.6 mm.
Back plate:
Number of backplates: 1.
Marking of backplate: Emergency stop.
Colour of backplate: Yellow.
