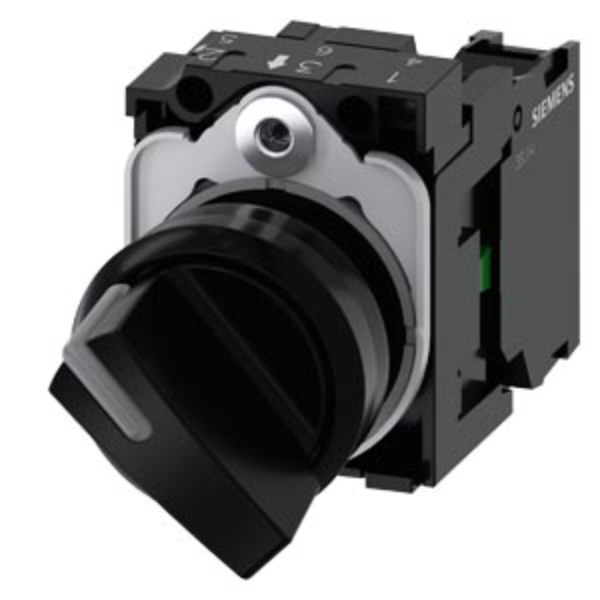

Toggle switch, illuminable, 22 mm, round, plastic, black, 1 NO

Specifications: Product brand name: SIRIUS ACT. Product designation: Selector switch. Design of the product: Complete unit. Product type designation: 3SU1. Product line: Plastic, black, 22 mm. Number of command points: 1. Insulation voltage rated value: 500 V. Type of voltage of the operating voltage: AC/DC. Protection class: IP66, IP67, IP69 (IP69K). Protection class of the terminal: IP20. Terminal current: 10 A. Material of holder: Plastic. Number of LED modules: 0. Actuator: Design of the actuating element: selector, short. Principal of the actuating element: Latching, 90° (10:30 h/13:30 h). Colour of the actuating element: black. Material of the actuating element: Plastic. Shape of the actuating element: Round. Outer diameter of the actuating element: 32.3 mm. Number of contact modules: 1. Number of switching positions: 2. Front ring: Product component front ring: Yes. Design of the front ring: Standard. Material of the front ring: Plastic. Colour of the front ring: Black. Auxiliary circuit: Design of the contact of the auxiliary contacts: Silver alloy. Number of NC contacts for the auxiliary contact: 0. Number of NO contacts for the auxiliary contact: 1. Ambient temperature: During operation: -25 - +70°C. During storage: -40 - +80°C. Installation/Mounting/Dimensions: Fastening method: Front plate mounting. Height: 40 mm. Width: 32.3 mm. Shape of the installation opening: Round. Mounting diameter: 22.3 mm. Mounting height: 28.8 mm. Installation width: 32.3 mm. Installation depth: 49.7 mm.
