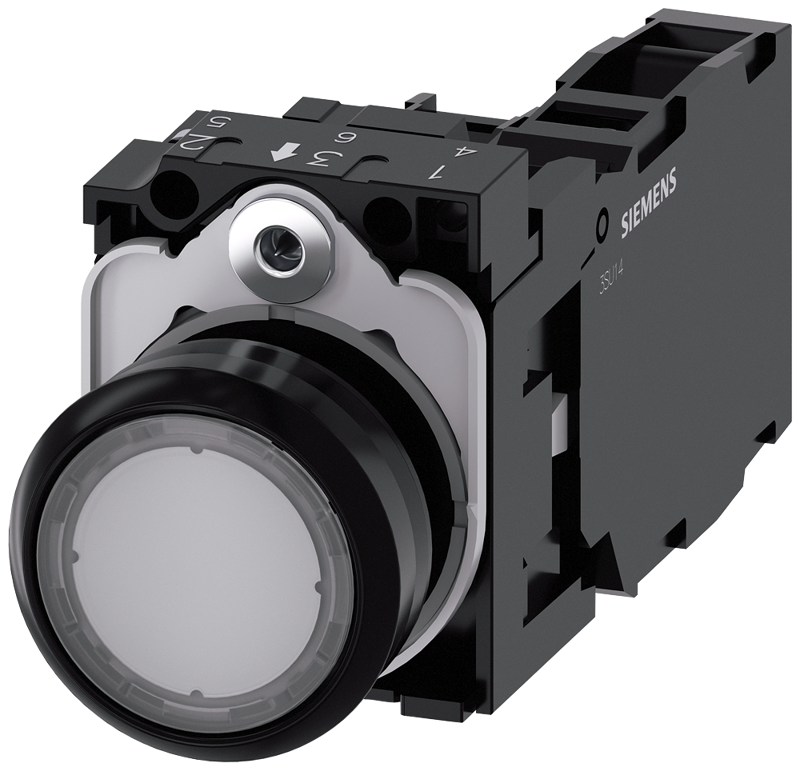

Pushbutton, illuminated, 22 mm, round, plastic, clear, 1 NO + 1 NC, 24 V AC/DC
SKU: 3SU1102-0AB70-1FA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Siemens provides a unique portfolio of pushbuttons and signalling devices with global product certifications in three modern design lines made of durable real metal and high-grade plastic.
A revolutionary Snap-on approach simplifies the work of installing a unit, allowing it to be completed with one hand and no additional tools.
Groove-free holes are acceptable as mounting holes because full twist protection is already built in.
Because of the high level of protection throughout, the rugged devices are suited for use in industry and outdoors.
It is feasible to clean with a high-pressure jet.
Dust, oils, and caustic solutions cannot interfere with reliable performance.
In addition to traditional wire, the devices can connect to the controller via PROFINET, AS-Interface, or IO-Link.
This will allow you to cut wiring time and effort, limit mistake causes and gain more flexibility.
The graphical online configurator makes it easy to pick and order specific devices, enclosures, and labels.
There is much documentation accessible, such as a manual, 3D data, and a terminal diagram.
Versions are available: several colours, illuminated/non-illuminated, with/without inscription, latching/momentary contact function, and different button and front ring heights.
Please keep in mind that the delivery includes both the holders and the modules.
SIRIUS ACT—Performance in action for control and signalling.
Simply mounted, simply strong, and simply excellent.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SIRIUS.
Product designation: illuminated pushbuttons.
Design of the product: Complete unit.
Product type designation: 3SU1.
Product line: Plastic, black, 22 mm.
Number of command points: 1.
Product function positive opening: yes.
Product component light source: yes.
Insulation voltage rated value: 320V.
Degree of pollution: 3.
Type of operating voltage: AC/DC.
Surge voltage resistance rated value: 4kV.
Protection class IP: IP66, IP76, IP69 (IP69K).
Protection class of the terminal: IP20.
Terminal current: 10A.
Operating voltage at AC:
At 50Hz rated value: 5 to 500V.
At 60Hz rated value: 5 to 500V.
Operating voltage at DC value: 5 to 500V.
Material of the holder: Plastic.
Number of the LED modules: 1.
Inrush current of LED module maximum: 2A.
Actuator:
Design of the actuating element: Button, flat.
Principle of operation of the actuating element: momentary contact type.
Product extension optional light source: yes.
Colour of the actuating element: clear.
Material of the actuating element: Plastic.
Shape of the actuating element: Round.
Outer diameter of the actuating element: 29.45 mm.
Number of contact modules: 1.
Front ring:
Product component front ring: yes.
Design of the front ring: Standard.
Material of the front ring: Plastic.
Colour of the front ring: Black.
Supply voltage:
Type of supply voltage of the light source: AC/DC.
Supply voltage of the light source at AC:
At 50Hz rated value: 24V.
At 60Hz rated value: 24V.
Supply voltage of light source at DC value: 24V.
Auxiliary circuit:
Design of the contact of auxiliary contacts: Silver alloy.
Number of NC contacts: 1.
Number of NO contacts: 1.
Connections/Terminals:
Type of electrical connection: Screw terminal.
Connection of modules and accessories: Screw-type terminals.
Lamp:
Type of light source: LED.
Colour of the light source: white.
Ambient temperature:
During operation: -25 to +70°C.
During Storage: -40 to +80°C.
Installation/mounting/dimensions:
Fastening method: Front plate mounting.
Fastening method of modules and accessories: Front plate mounting.
Height: 40 mm.
Width: 30 mm.
Shape of the installation opening: Round.
Mounting diameter: 22.3 mm.
Positive tolerance of installation diameter: 0.4 mm.
Mounting height: 11 mm.
Installation width: 29.5 mm.
Installation depth: 71.7 mm.
