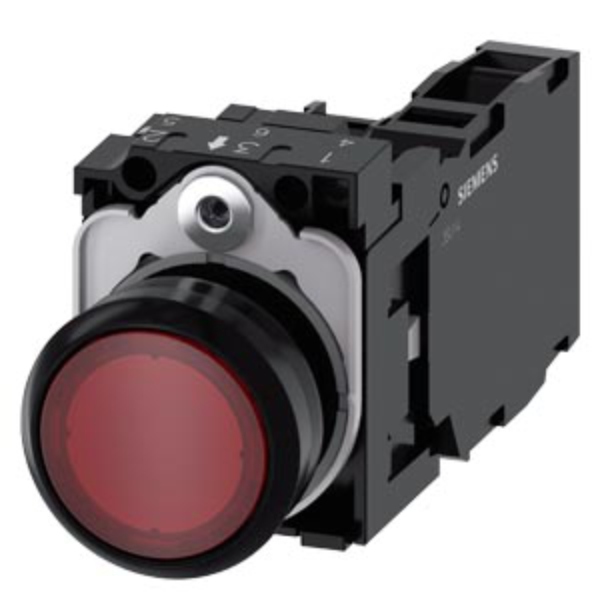

Pushbutton, illuminated, 22 mm, round, plastic, red, 1 NO + 1 NC, 110 V AC
SKU: 3SU1103-0AB20-1FA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Siemens provides a unique portfolio of pushbuttons and signalling devices with global product certifications in three modern design lines made of durable real metal and high-grade plastic.
A revolutionary Snap-on approach simplifies the work of installing a unit, allowing it to be completed with one hand and no additional tools.
Groove-free holes are acceptable as mounting holes because full twist protection is already built in.
Because of the high level of protection throughout, the rugged devices are suited for use in industry and outdoors.
It is feasible to clean with a high-pressure jet.
Dust, oils, and caustic solutions cannot interfere with reliable performance.
In addition to traditional wire, the devices can connect to the controller via PROFINET, AS-Interface, or IO-Link.
This will allow you to cut wiring time and effort, limit mistake causes and gain more flexibility.
The graphical Online Configurator makes it easy to pick and order specific devices, enclosures, and labels.
There is much documentation accessible, such as a manual, 3D data, and a terminal diagram.
Versions are available in several colours, illuminated/non-illuminated, with/without inscription, latching/momentary contact function, and different button and front ring heights.
Please keep in mind that the delivery includes both the holders and the modules.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Brand name: SIRIUS ACT.
Product designation: Illuminated pushbuttons.
Design of the product: Complete unit.
Product type designation: 3SU1.
Product line: Plastic, Black, 22 mm.
Number of command points: 1.
Insulation voltage rated value: 320V.
Type of voltage of operating voltage: AC/DC.
Protection class: IP66, IP67, IP69 (IP69K).
Protection class of the terminal: IP20, clamping screw tightened.
Terminal current: 10A.
Operating voltage:
At AC:
At 50Hz rated value: 5 – 500V.
At 60Hz rated value: 5 – 500V.
At DC rated value: 5 – 500V.
Material of holder: Plastic.
Number of LED modules: 1.
Actuator:
Design of the actuating element: Button, flat.
Principal of operation of the actuating element: Momentary contact type.
Colour of the actuating element: red.
Material of the actuating element: Plastic.
Shape of the actuating element: Round.
Outer diameter of the actuating element: 29.45 mm.
Number of contact modules: 1.
Front ring:
Product component front ring: Yes.
Design of the front ring: Standard.
Material of the front ring: Plastic.
Colour of the front ring: Black.
Supply voltage:
Type of voltage of the supply voltage of the light source: AC.
Supply voltage of the light source at AC:
At 50 Hz rated value: 110V.
At 60 Hz rated value: 110V.
Auxiliary Circuit:
Design of the contact of the auxiliary contacts: Silver alloy.
Number of NC contacts for the auxiliary contacts: 1.
Number of NO contacts for the auxiliary contacts: 1.
Connection/Terminals:
Type of electrical connections: Screw terminals.
Of modules and accessories: Screw-type terminals.
Lamp:
Type of light source: LED.
Colour of the light source: red.
Light intensity: 450 – 1120 mcd.
Ambient Temperature:
During operation: -25 - +70°C.
During storage: -40 - +80°C.
Installation/Mounting/Dimensions:
Fastening method: Front plate mounting.
Of modules and accessories: Front plate mounting.
Height: 40 mm.
Width: 30 mm.
Shape of the installation opening: Round.
Mounting diameter: 22.3 mm.
Mounting height: 11 mm.
Installation width: 29.5 mm.
Installation depth: 71.7 mm.
