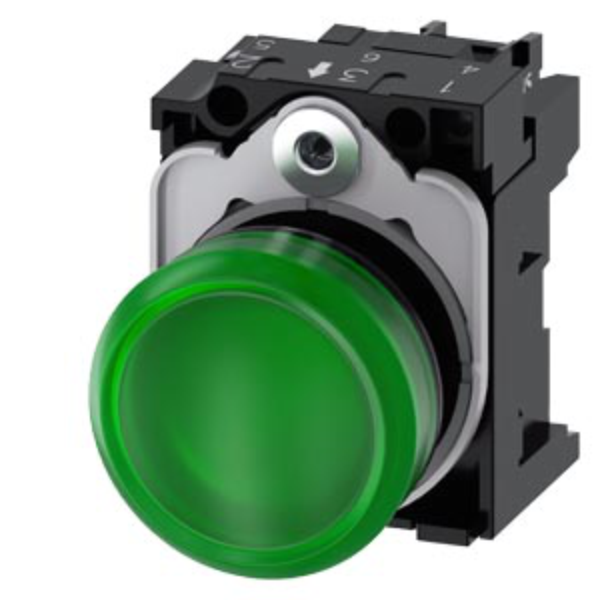

Indicator light, 22 mm, round, plastic, green, lens, smooth, 110 V AC
SKU: 3SU1103-6AA40-1AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Indicator lights, 22 mm, round, plastic, green, lens, smooth, with holder, LED module with integrated LED 110 V AC, screw terminal.
Thanks to energy-efficient LED technology, indicator lights SIRIUS ACT can signal faults or switching statuses in systems with high luminance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SIRIUS ACT.
Product designation: Indicator lights.
Design of the product: Complete unit.
Product type designation: 3SU1.
Product line: Plastic, black, 22 mm.
Number of command points: 1.
Product component light source: yes.
Insulation voltage rated value: 320 V.
Protection class: IP66, IP67, IP69 (IP69K).
Protection class of the terminal: IP20.
Material of holder: Plastic.
Number of LED modules: 1.
Product component front ring: no.
Actuator:
Product extension optional light source: Yes.
Colour of the actuating element: green.
Material of the actuating element: Plastic.
Shape of the actuating element: Round.
Outer diameter of the actuating element: 29.45 mm.
Supply voltage:
Type of voltage of the light source: AC.
Supply voltage of the light source at AC:
At 50 Hz rated value: 110 V.
At 60 Hz rated value: 110 V.
Inrush current maximum: 3 A.
Lamp:
Type of light source: LED.
Colour of the light source: green.
Light intensity: 900 – 1800 mcd.
Ambient temperature:
During operation: -25 - +70°C.
During storage: -40 - +80°C.
Installing/Mounting/Dimensions:
Fastening method: front plate mounting.
Height: 40 mm.
Width: 30 mm.
Shape of the installation opening: Round.
Mounting diameter: 22.3 mm.
Mounting height: 11.8 mm.
Installation width: 29.5 mm.
Installation depth: 49.7 mm.
