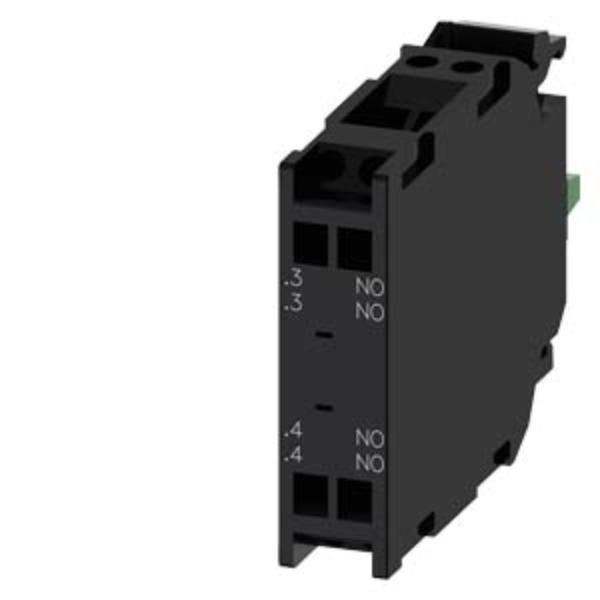

Contact module with 2 contact elements, 2 NO, gold-plated contacts, spring-ty...

Specifications: Product brand name: SIRIUS ACT. Product designation: Contact module. Product type designation: 3SU1. Insulation voltage rated value: 500 V. Type of voltage: Of the operating voltage: AC/DC. Of the input voltage: AC/DC. Protection class: Of the enclosure: IP40. Of the terminal: IP20. Terminal current: 10 A. Operating voltage: At AC: At 50 Hz rated value: 5 - 500 V. At 60 Hz rated value: 5 - 500 V. At DC rated value: 5 - 500 V. Auxiliary circuit: Design of the contact of the auxiliary contact: gold-plated. Number of NC contacts for auxiliary contacts: 0. Lagging switching:0. Number of NO contact for auxiliary contacts: 2. Leading switching: 0. Operational current at AC-12: At 24 V rated value: 10 A. At 48 V rated value: 10 A. At 110 V rated value: 10 A. At 230 V rated value: 8 A. At 400 V rated value: 8 A. Operational current at AC-15: At 24 V rated value: 6 A. At 48 V rated value: 6 A. At 110 V rated value: 6 A. At 230 V rated value: 6 A. At 400 V rated value: 3 A. At 500 V rated value: 1.4 A. Operational current at DC-12: At 24 V rated value: 10 A. At 48 V rated value: 5 A. At 110 V rated value: 2.5 A. At 230 V rated value: 1 A. At 400 V rated value: 0.3 A. At 500 V rated value: 0.3 A. Operational current at DC-13: At 24 V rated value: 3 A. At 48 V rated value: 1.5 A. At 110 V rated value: 0.7 A. At 230 V rated value: 0.3 A. At 400 V rated value: 0.1 A. At 500 V rated value: 0.1 A. Type of electrical connection: Spring-loaded terminal. Ambient temperature: During operation: -25 - +70°C. During storage: -40 - +80°C. Installation/Mounting/Dimensions: Fastening method of modules and accessories: Front plate mounting. Height: 36 mm. Width: 9.8 mm. Depth: 49.7 mm. Suitability for integration: Plastic enclosure: no. Metal enclosure: no.
