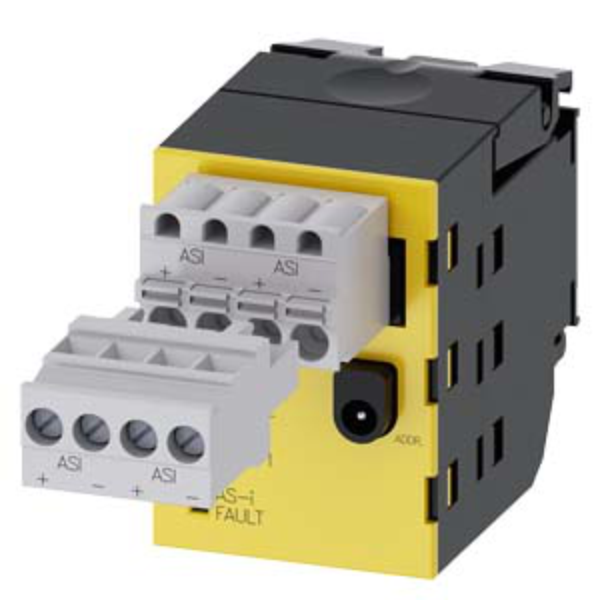

AS-Interface module, 2 safe inputs, black
SKU: 3SU1400-1EA10-2AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
AS-Interface module, 2 safe inputs, black.
4-pole connector with screw terminal and 4-pole connector with spring-type terminal, for front plate mounting.
AS-Interface module SIRIUS ACT for communication connection of the actuating and signaling elements.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SIRIUS ACT.
Product designation: AS-Interface module.
Product type designation: 3SU1.
Product function: 2F-DI.
Type of voltage:
Of the operating voltage: DC.
Of the input voltage: DC.
Consumed current maximum: 60 mA.
Protection class: IP20, clamping screw tightened.
Operating voltage rated value: 26.5 - 31.6 V.
Operating voltage at DC rated value: 30 V.
Inputs/Outputs:
Number of digital inputs:
Safety related: 2.
Type of electrical connection: Screw connection + Spring-type terminal.
Ambient temperature:
During operation: -25 - +70°C.
During storage: -40 - +80°C.
Installation/Mounting/Dimensions:
Fastening method:
Of modules and accessories: Front plate mounting.
Of AS-I slaves: Front plate mounting.
Height: 42 mm.
Width: 30 mm.
Depth: 65.5 mm.
