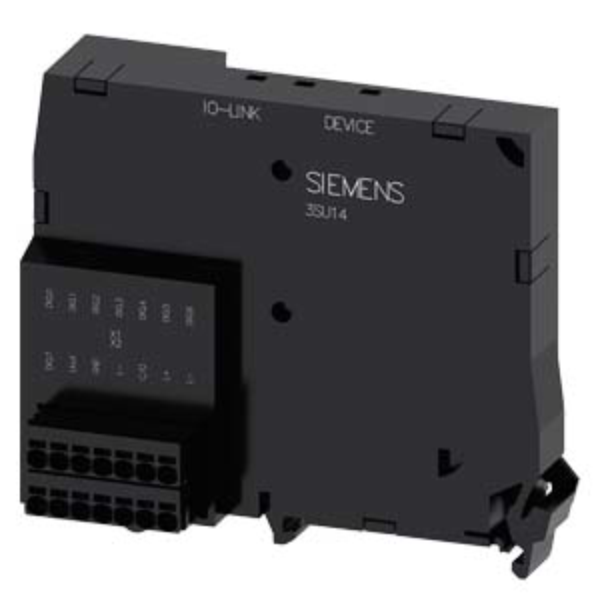

Electronic module for IO-Link, black, 8 inputs/outputs, freely programmable
SKU: 3SU1400-1HL10-6AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Electronics module for IO-Link, black, 8 inputs/outputs.
User-programmable, default 6 DI/2 DQ, Spring-type terminal (Push-in), for front plate mounting.
Electronic module for IO-Link SIRIUS ACT for connection of the actuating and signaling elements via IO-Link.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SIRIUS ACT.
Product designation: Electronic module for IO-Link.
Product type designation: 3SU1.
Insulation voltage rated value: 30 V.
Type of voltage:
Of the operating voltage: DC.
Of the input voltage: DC.
Consumed current maximum: 41 mA.
Protection class: IP20.
Operating voltage rated value: 18 - 30 V.
Operating voltage at DC rated value: 24 V.
Inputs/Outputs:
Number of digital inputs: freely programmable.
Number of digital outputs: freely programmable.
Type of electrical connection: Spring-Loaded terminal (push-in).
Ambient temperature:
During operation: -25 - +70°C.
During storage: -40 - +80°C.
Installation/Mounting/Dimensions:
Fastening method of modules and accessories: Front plate mounting.
Height: 57.5 mm.
Width: 23.8 mm.
Depth: 53.5 mm.
