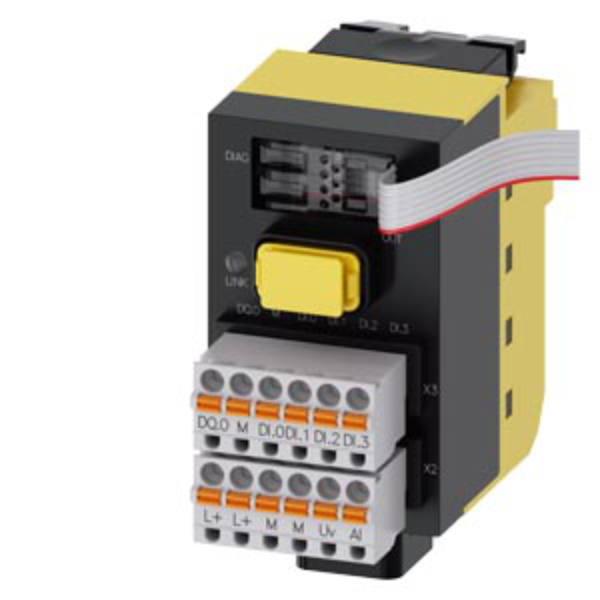

Interface module for PROFINET, fail-safe, 24 V DC, 1-20 terminal modules
SKU: 3SU1400-1LL10-3BA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIRIUS ACT with PROFINET: fail-safe interface module with 4 DI, 1 DQ (24 V DC), 1 AI (12-bit A/D resolution).
24 V DC, spring-loaded terminal, front plate mounting, 1 to 20 terminal modules connectable.
Interface module for PROFINET SIRIUS ACT for connection of the actuating and signaling elements via PROFINET.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SIRIUS ACT.
Product designation: Fail-safe interface module for PROFINET.
Product type designation: 3SU1.
Product function:
Reverse polarity protection: Yes, with polarity change, DI1 - DI4 may not be connected to (M) pole.
Diagnostics function: Yes.
Alarms: Yes.
I and M data: Yes, I&M0 - I&M3.
Firmware version: 2.1.4.
Hardware version: 1.
Number of units per rack maximum: 20.
Number of submodules per station maximum: 24.
Power loss: 0.67 W.
Insulation voltage rated value: 30 V.
Type of voltage:
Of the operating voltage: DC.
Of the input voltage: DC.
Consumed current:
Maximum: 100 mA.
Rated value: 28 mA.
Protection class: IP20.
Operating voltage rated value minimum: 20.4 V.
Supply voltage at DC rated value: 24 V.
Inrush current maximum: 16 A.
Inputs/Outputs:
Number of digital inputs: 4.
Safety-related: 0.
Number of analog inputs: 1.
Number of digital outputs: 0.
Interfaces:
Design of the interface:
Ethernet interface: Yes.
Fast Ethernet interface: Yes, PROFI NET with 100 Mbps.
Interface design: RJ45 (Ethernet).
Number of ports at the interface: 1.
Ambient temperature:
During operation: -25 - +60°C.
During storage: -40 - +80°C.
Installation/Mounting/Dimensions:
Fastening method of modules and accessories: Front plate mounting.
Height: 80.1 mm.
Width: 40 mm.
Depth: 72.1 mm.
