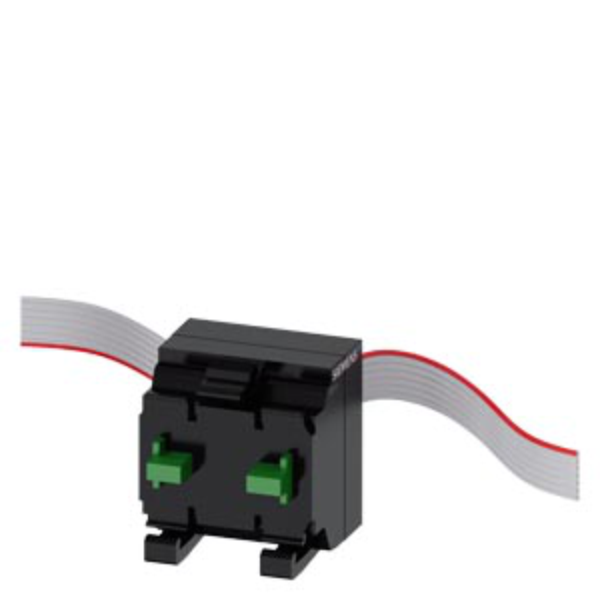

Terminal module (command module), front plate mounting
SKU: 3SU1400-1MA10-1BA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIRIUS ACT: terminal module (command module) for front plate mounting.
Terminal module SIRIUS ACT for connection of the actuating and signaling elements via PROFINET.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SIRIUS ACT.
Product designation: Terminal module.
Design of the product: With 2 contacts.
Product type designation: 3SU1.
Product function:
Reverse polarity protection: Yes, ribbon cable can be rotated 180°.
Diagnostics function: Yes.
Firmware version: 1.0.0.
Hardware version: 1.
Power loss: 0.115 W.
Type of voltage:
Of the operating voltage: DC.
Of the input voltage: DC.
Consumed current:
Maximum: 27 mA.
Rated value: 23 mA.
Protection class: IP20.
Ambient temperature:
During operation: -25 - +60°C.
During storage: -40 - +80°C.
Installation/Mounting/Dimensions:
Fastening method of modules and accessories: Front plate mounting.
Height: 32.6 mm.
Width: 30 mm.
Depth: 31.5 mm.
