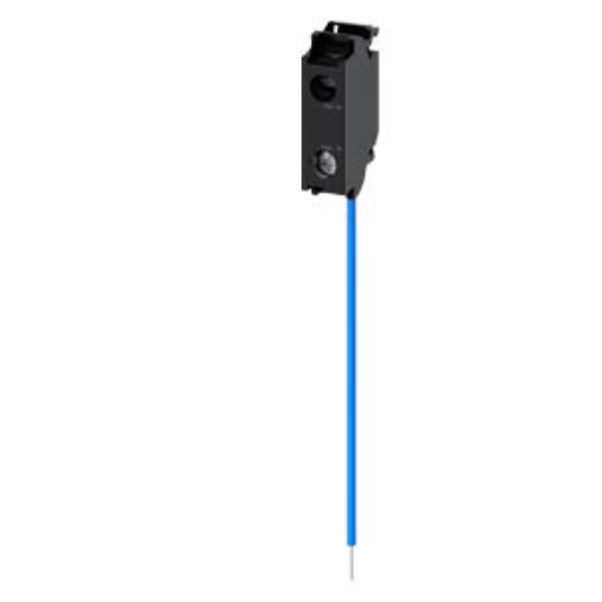

LED test module 12-240 V AC/DC
SKU: 3SU1400-2CK10-1AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
LED test module Operating voltage 6-240 V AC/DC, screw terminal, for floor mounting, for LED modules (6-24 V AC/DC, 24 V AC/DC, 24-240 V AC/DC).
SIRIUS ACT for testing the functionality of up to 30 SIRIUS ACT LED modules.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SIRIUS ACT.
Product designation: LED test module.
Product type designation: 3SU1.
Product component: Diode.
Insulation voltage rated value: 320 V.
Type of voltage:
Of the operating voltage: AC/DC.
Of the input voltage: AC/DC.
Consumed current maximum: 0 mA.
Protection class:
Of the enclosure: IP40.
Of the terminal: IP20.
Operating voltage:
At AC:
At 50 Hz rated value: 12 - 240 V.
At 60 Hz rated value: 12 - 240 V.
At DC rated value: 12 - 240 V.
Inrush current maximum: 3 A.
Type of electrical connection: Screw terminal.
Ambient temperature:
During operation: -25 - +70°C.
During storage: -40 - +80°C.
Installation/Mounting/Dimensions:
Fastening method of modules and accessories: floor mounting.
Height: 36 mm.
Width: 9.8 mm.
Depth: 25 mm.
