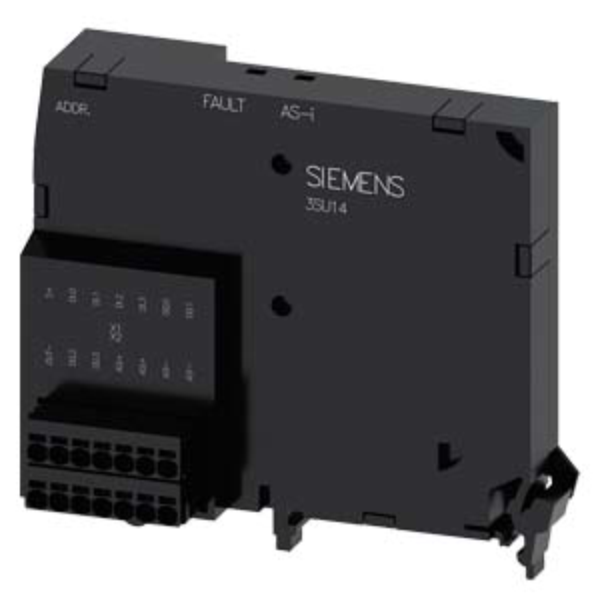

AS-Interface module, 4 inputs and 4 outputs, black
SKU: 3SU1400-2EK10-6AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
AS-Interface module, 4 inputs and 4 outputs, black, Spring-type terminal (Push-in), for input/output, for floor mounting.
AS-Interface module SIRIUS ACT for communication connection of the actuating and signaling elements.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SIRIUS ACT.
Product designation: AS-Interface module.
Product type designation: 3SU1.
Product function: 4 DI/4 DQ.
Type of voltage:
Of the operating voltage: DC.
Of the input voltage: DC.
Consumed current maximum: 150 mA.
Protection class: IP20.
Operating voltage rated value: 18 - 31.6 V.
Operating voltage at DC rated value: 30 V.
Consumed current input: 2 mA.
Inputs/Outputs:
Number of digital inputs: 4.
Safety related: 0.
Number of digital outputs: 4.
Type of electrical connection: Spring-loaded terminal (push-in).
Ambient temperature:
During operation: -25 - +70°C.
During storage: -40 - +80°C.
Installation/Mounting/Dimensions:
Fastening method:
Of modules and accessories: Floor mounting.
Of AS-I slaves: Floor mounting.
Height: 60 mm.
Width: 23.8 mm.
Depth: 53.5 mm.
