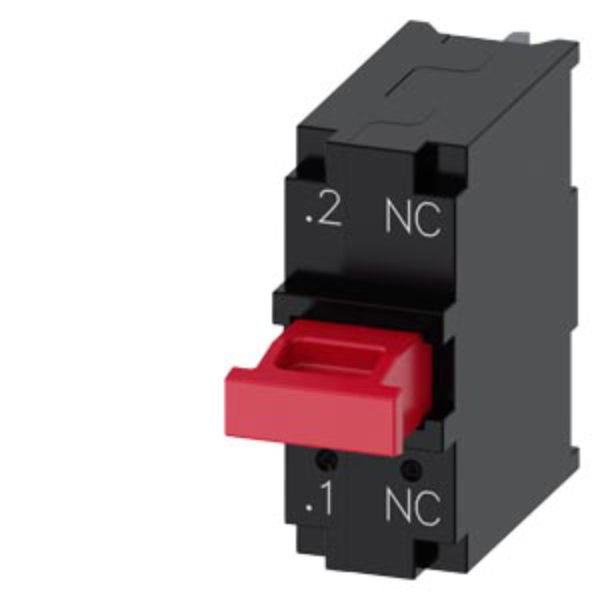

Contact module with 1 contact element, 1 NC, soldered connection

Specifications: Product brand name: SIRIUS ACT. Product designation: Contact module. Product type designation: 3SU1. Insulation voltage rated value: 250 V. Type of voltage: Of the operating voltage: AC/DC. Of the input voltage: AC/DC. Protection class: Of the enclosure: IP40. Of the terminal: IP00. Terminal current: 10 A. Operating voltage: At AC: At 50 Hz rated value: 5 - 240 V. At 60 Hz rated value: 5 - 240 V. At DC rated value: 5 - 250 V. Auxiliary circuit: Design of the contact of the auxiliary contact: silver alloy. Number of NC contacts for auxiliary contacts: 1. Lagging switching:0. Number of NO contact for auxiliary contacts: 0. Leading switching: 0. Operational current at AC-12: At 24 V rated value: 10 A. At 48 V rated value: 10 A. At 110 V rated value: 10 A. At 230 V rated value: 10 A. Operational current at AC-15: At 24 V rated value: 6 A. At 48 V rated value: 6 A. At 110 V rated value: 6 A. At 230 V rated value: 4 A. Operational current at DC-12: At 24 V rated value: 10 A. At 48 V rated value: 5 A. At 110 V rated value: 2.5 A. At 230 V rated value: 1 A. Operational current at DC-13: At 24 V rated value: 3 A. At 48 V rated value: 1.5 A. At 110 V rated value: 0.7 A. At 230 V rated value: 0.3 A. Type of electrical connection: Socket connection (THT). Ambient temperature: During operation: -25 - +70°C. During storage: -40 - +80°C. Installation/Mounting/Dimensions: Fastening method of modules and accessories: Printed circuit board. Height: 18.5 mm. Width: 7.6 mm. Depth: 16.2 mm. Suitability for integration: Plastic enclosure: no. Metal enclosure: no.
