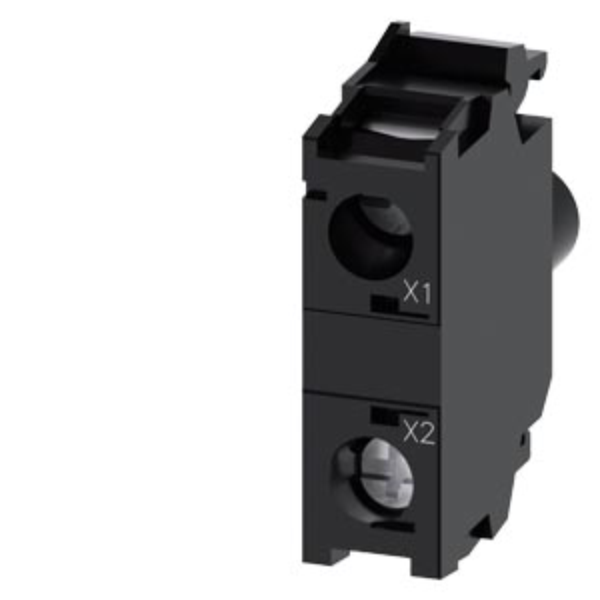

LED module with integrated LED, 230 V AC, green
SKU: 3SU1401-1BF40-1AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
LED module with integrated LED 230 V AC, green, screw terminal, for front plate mounting.
LED module SIRIUS ACT for illuminating.
SIRIUS ACT pushbuttons and indicator lights with high luminosity thanks to energy efficient LED technology.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SIRIUS ACT.
Product designation: LED module.
Product type designation: 3SU1.
Product component:
Diode.
Light source.
Insulation voltage rated value: 320 V.
Type of voltage:
Of the operating voltage: AC.
Of the input voltage: AC.
Consumed current maximum: 20 mA.
Protection class:
Of the enclosure: IP40.
Of the terminal: IP20.
Operating voltage:
At AC:
At 50 Hz rated value: 230 V.
At 60 Hz rated value: 230 V.
Inrush current maximum: 3 A.
Type of electrical connection: Screw terminal.
Lamp:
Type of light source: LED.
Colour of the light source: green.
Light intensity: 900 - 1400 mcd.
Ambient temperature:
During operation: -25 - +70°C.
During storage: -40 - +80°C.
Installation/Mounting/Dimensions:
Fastening method of modules and accessories: Front plate mounting.
Height: 33.2 mm.
Width: 9.8 mm.
Depth: 29.4 mm.
