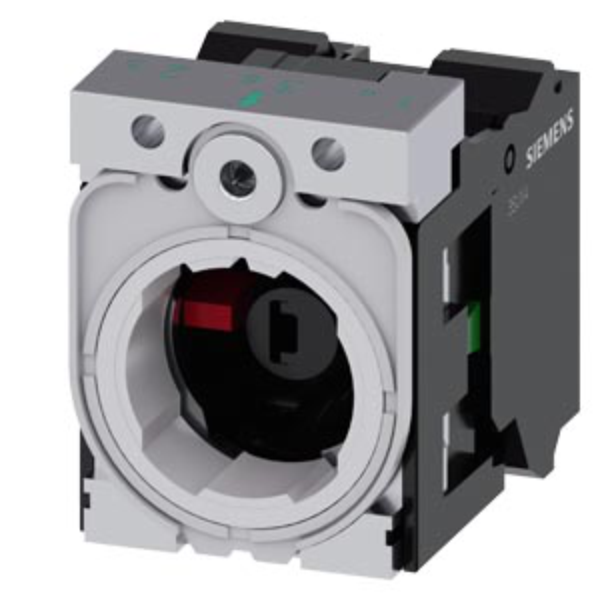

Holder for 3 modules, metal, 1 NO, 1 NC, LED module, blue, 24 V AC/DC
SKU: 3SU1511-1AB50-3MA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Holder, 3-way, metal, 1 NO, 1 NC, LED module, blue.
24 V AC/DC, spring-loaded terminal.
Standard: 3-slot holders, 4-slot holders only in conjunction with coordinate switches/selector switches with 4 positions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SIRIUS ACT.
Product designation: Holders.
Design of the product: Holder for metal.
Product type designation: 3SU1.
Insulation voltage rated value: 320 V.
Protection class of the terminal: IP20.
Terminal current: 10 A.
Material of holder: Metal.
Number of LED modules: 1.
Inrush current of LED module maximum: 2 A.
Actuator:
Design of the actuating element: 3-Way with module.
Number of contact modules: 2.
Auxiliary circuit:
Design of the contact of the auxiliary contacts: Silver alloy.
Number of NC contacts for the auxiliary contact: 1.
Number of NO contacts for the auxiliary contact: 1.
Operational current at AC-15 at 230 V rated value: 6 A.
Lamp:
Type of light source: LED.
Colour of the light source: blue.
Ambient temperature:
During operation: -25 - +70°C.
During storage: -40 - +80°C.
Installation/Mounting/Dimensions:
Fastening method: Front plate mounting.
Height: 40 mm.
Width: 30 mm.
Shape of the installation opening: Round.
Installation width: 30 mm.
Installation depth: 49.8 mm.
Thickness of the front plate usable: 1 – 6 mm.
