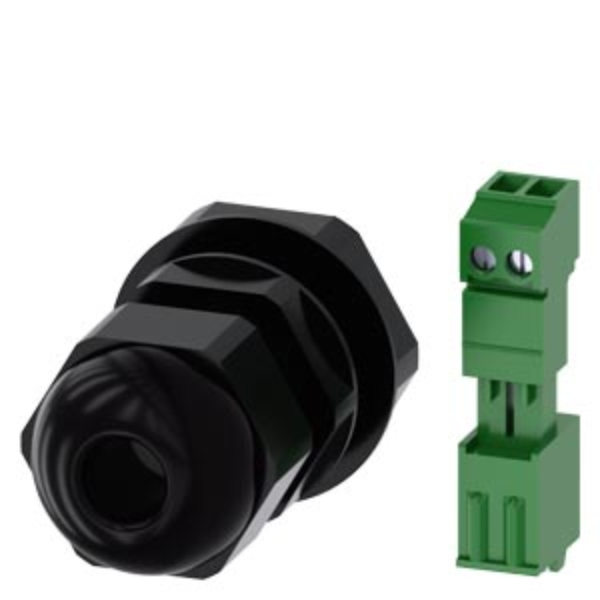

Metric screw connection M25 for routing the Round cable into AS-i-housing, for plastic or metal Enclosure with 4-6 control points
SKU: 3SU1900-0JB10-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Metric screw connection M25 for routing round cable into AS-i housing for plastic or metal enclosures with 4-6 control points, including a 2-pole cable connector for the AS-i module.
A revolutionary Snap-on approach simplifies the work of installing a unit, allowing it to be completed with one hand and no additional tools.
Groove-free holes are acceptable as mounting holes because full twist protection is already built in.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Brand name: SIRIUS ACT.
Product designation: Metric cable gland.
Design of the product: M25 for round cable and AS-I enclosures with 4 and 6 command points with 2-pin connector plug for AS-I module.
Product type designation: 3SU1.
Protection class: IP66, IP67, IP69 (IP69K).
Ambient Temperature:
During operation: -25 - +70°C.
During storage and transport: -40 - +80°C.
Installation/Mounting/Dimensions:
Height: 29.7 mm.
Width: 29.7 mm.
Mounting height: 31 mm.
Installation depth: 13 mm.
