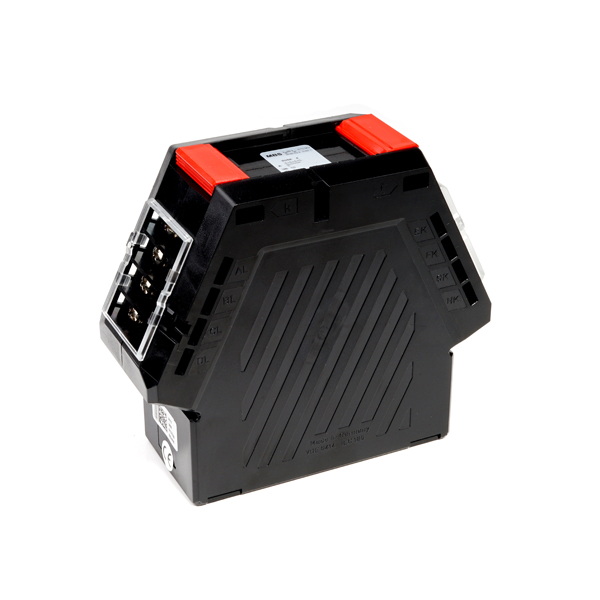

SUSK 4 5+5+5+5/5A SUMMATION CT cl1
SKU: 40027
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Class of isolation: E.
Up to 0.72 kV is the maximum operating voltage.
50 Hz is the nominal frequency (others upon request).
Ith = 60 x In is the nominal thermal short-time current.
FS 5 is the over-current limiting factor up to a nominal current of 1500 A.
MBS AG current transformers completely comply with VBG 4, IEC 61869/1+2, DIN 42600, and DIN VDE 0414/1.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Summation current transformers (5A secondary - class 1),
SUSK 4 summation current transformers,
MODEL SUSK 4, RATIO 5+5+5+5/5A,
DESCRIPTION Summation wound current transformer,
CLASS 1,
VA 10,
DIMENSIONS (MM) (H) 137 x (W) 156 x (D) 65
