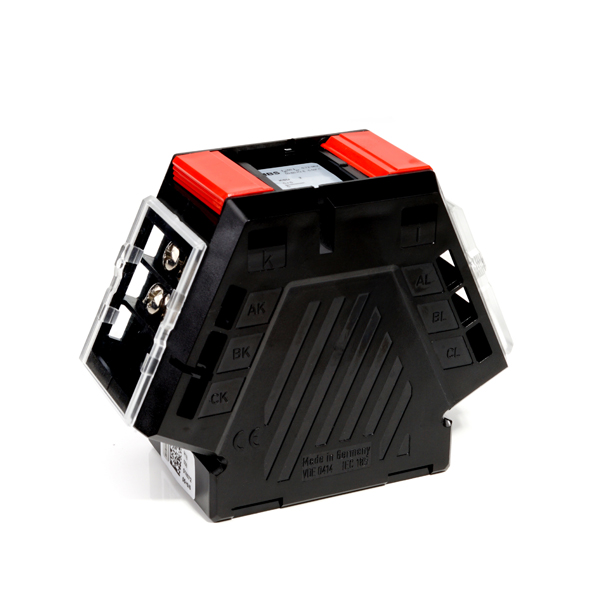

KSU 2/3 5+5+5/5A SUMMATION CT cl1
SKU: 41031
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Class of isolation: E.
Um 0.72 kV is the maximum operational voltage.
50 Hz is the nominal frequency (others upon request).
Ith = 60 x In is the nominal thermal short-time current.
FS 5 is the overcurrent limiting factor up to a notional current of 1500 A.
MBS AG current transformers completely comply with IEC 61869/1+2, DIN 42600, VBG 4, and DIN VDE 0414/1.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Summation current transformers (5A secondary - class 1),
KSU 2/3 summation current transformers,
MODEL KSU 2/3,
RATIO 5+5+5/5A,
DESCRIPTION Summation wound current transformer,
CLASS 1,
VA 10,
DIMENSIONS (MM) (H) 94 x (W) 127 x (D) 57
