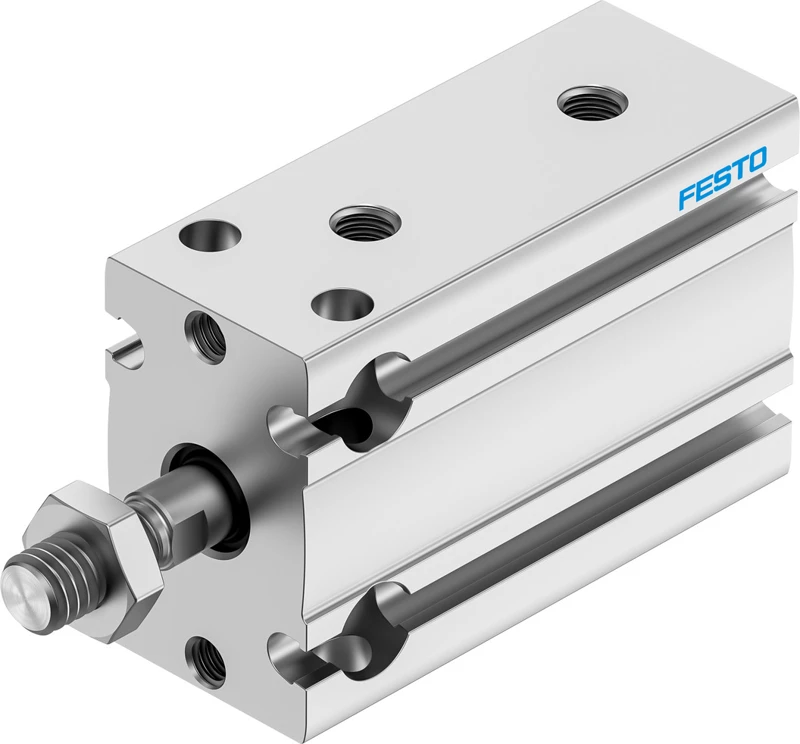

Compact cylinder, DPDM-...-16- -
SKU: 4186566
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Compact cylinder DPDM, multimount
• Stroke 5 mm ... 50 mm
• Piston diameter 16 mm
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Mode of operation Double-acting, Pushing, Single-acting, Pulling
• Design Piston, Piston rod, Profile barrel
• Position detection Via proximity switch
• Variants: Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. Through piston rod, Through, hollow piston rod, Heat-resistant seals max. 120°C, Piston rod at one end
Buy currently uses Select Automation shop pricing and checkout.
Compact cylinder DPDM, multimount
• Double- and single-acting versions
• With and without protection against rotation
• Easy to interchange compared to the compact cylinder DMM
• Simple to mount thanks to a range of mounting interfaces
• Optional: heat-resistant up to 120 °C
• Comparison of compact cylinder DMM and compact cylinder DPDM: All mounting interfaces of the compact cylinder DPDM are compatible with those of the compact cylinder DMM. Compared to the DMM, however, the DPDM is noticeably shorter, giving a lower product weight for the same functionality
