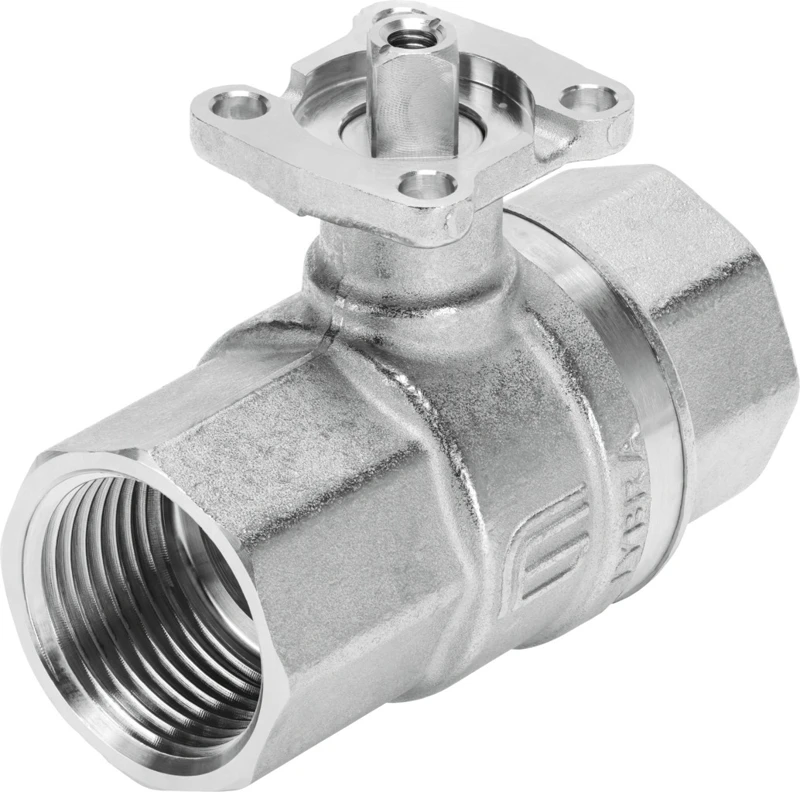

Ball valve, VZBM-3/8-RP-40-D-2-F03-B2B3
SKU: 4405647
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Ball valves VZBM, 2-way
• Design 2-way ball valve
• Type of actuation Mechanical
• Sealing principle Soft
• Mounting position optional
• Type of mounting In-line installation
• Connection Process valve Rp3/8
• Switching position indicator Slot direction = flow direction
• Flange hole pattern F03
• Inside diameter 10 mm
• Nominal size DN 10
• Valve function 2/2
• Flow direction Reversible
• Flow rate Kv 9.4 m³/h
Buy currently uses Select Automation shop pricing and checkout.
Ball valve VZBM
• 2- or 3-way ball valve VZBM made from brass with L and T holes.
• VZBM can be actuated automatically or using a hand lever.
• Brass design
• Pipe thread to EN 10226-1
