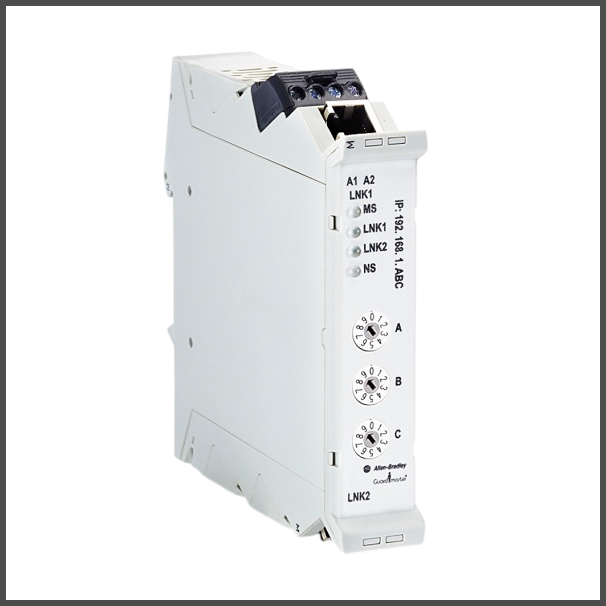

Guardmaster 2-Port Ethernet Interface

Specifications: Communication Speed: 10/100 Mbit/s, half or. Compatibility: GSR Relays FW2 or later GSR DG. Connection Cables: RJ-45, Category 5. Degree Of Protection: IP20. Power Supply: 24V DC. Inputs: Optical Bus, Infrared light. Device Configuration: Logix Designer, AOP. GSR Relay capacity: Maximum of Six GSR safety relays. Ethernet connection: Two RJ-45 connectors, Category 5. Terminal: Removable, screw type terminal.   Guard Link® Technology Guard Link is a safety-based communications protocol that links safety to The Connected Enterprise. Allen-Bradley® Guard master® smart safety devices featuring Guard Link technology deliver information, advanced functionality and flexibility, while enhancing safety and increasing efficiency machine- and plant-wide. Guard Link enabled devices offer advanced features and diagnostics that can only be accessed through a Guard Link connection tap. Guard Link provides access to diagnostic data when the safety function occurs. No configuration is required, with wiring achieved using standard cables with M12 connectors. A maximum of 32 safety input devices can be connected in series. Guard Link enabled taps to allow standard safety input devices with either electromechanical or solid-state safety outputs to be connected to a Guard Link system. Passive taps allow safety input devices with built-in Guard Link technology to be connected to a Guard Link system. Remote lock/unlock and fault reset of safety input devices can be achieved. Certified for applications up to and including PLe Cat 4 (ISO 13849-1) and SIL CL3 (IEC 62061).   Guard Link Enabled Connection Taps Provides device location and status to DG Relay. Two bright indicators for device and link communication status. Compact 40 mm housing fits on standard aluminum profiles. TÜV Approved PLe, SIL 3, Cat 4 Rated. IP65/IP67/IP69k environmental rating. Power-To-Release and Power-To-Lock Taps Available DG Guard master Safety Relays. Dual channel relay monitors up to two circuits – one or two Guard Link circuits, one or two safety input devices, or one of each. Local controls to configure the safety function. Configurable multipurpose terminals. Relay outputs to switch higher loads. Connectivity to network interface via optical link. Support of Single Wire Safety (SWS) to cascade multiple safety relays. Add-on profile for Studio 5000® Logix Designer software provides access to relay and Guard Link device data.
