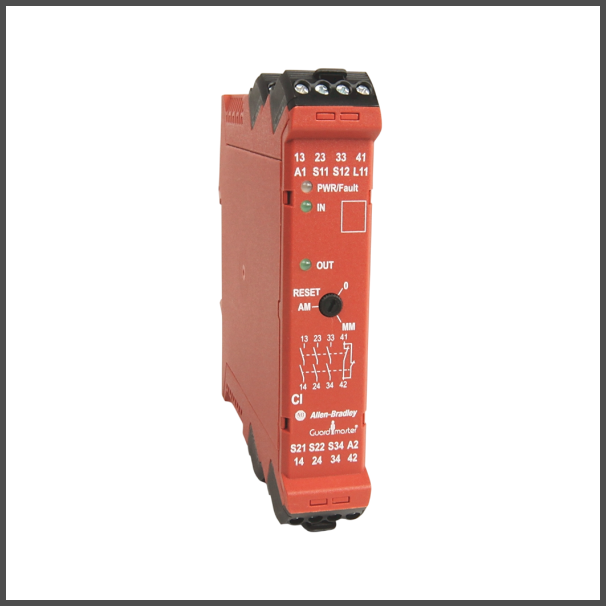

Guardmaster Single Input Safety Relay

Specifications: Output: 3 Normally Open. Aggregate current outputs per module, max: 6 A. Continuous safety output current: UL: C300, AC-15: 1.5 A/250V AC, DC-13: 2 A/24V DC (0.1 Hz). Evaluation inputs: One- and two-channel. Model: Basic device. Number of outputs, safety related, delayed, semiconductors: 0. Number of outputs, safety related, delayed, with contact: 0. Number of outputs, safety related, undelayed, semiconductors: 0. Number of outputs, safety related, undelayed, with contact: 3. Number of outputs, signaling function, delayed, semiconductors: 0. Number of outputs, signaling function, delayed, with contact: 0. Number of outputs, signaling function, undelayed, semiconductors: 0. Number of outputs, signaling function, undelayed, with contact: 1. Operating voltage range: 20.4. Other input: SWS input. Other output: SWS output. Power consumption: 3.5 W. Rated control supply voltage at DC: 24 V. Suitable for monitoring of emergency-stop circuits: True. Suitable for monitoring of magnetic switches: True. Suitable for monitoring optoelectronic protection equipment: True. Suitable for monitoring position switches: True. Suitable for monitoring proximity switches: True. Suitable for monitoring of tactile sensors: True. Suitable for monitoring of valves: True. Surge Aux output current: 700 mA. Surge auxiliary output current duration, max: 5 Ms. Type of electric connection: Screw connection. Voltage type for actuating: DC. Wire size: 0.2...2.5 mm² (24...14 AWG). With feedback circuit: True. With muting function: False. With start input: False. Category: Up to 4. Hardware fault tolerance: 1. Mode of operation: High demand mode. Operating temperature: -5 °C. PFHd: 0.00000000426. Relative humidity: 90%. Safe failure fraction: 99 %. Safety integrity level claim limit: 2. DC avg: 99 %. Days of operation: 365 d bays. Hours of operation: 24 h. MTTFd: 164 years. Mission time: 20 years. Performance level: Up to e. T cycle: 8/28.8 (h/s). Enclosure protection: IP40 (NEMA 1). Mechanical life operations: 1.0E7. Rail mounting possible: True. Rated control supply voltage at AC 50 Hz: 0 V. Rated control supply voltage at AC 60 Hz: 0 V. Release-delay: 0 s. Shock: Shock proof, operating: 10 g, 16 MS. Vibration: 10...55 Hz, 0.35 mm. With detachable clamps: True. Depth: 113.6 mm. Height: 119.4 mm. Width: 22.5 mm.   Guard master® Safety Relays (GSR Family) 440R A broad range of safety functions. Simple logic, reset, and timing configurations. Single-wire safety relay connection. Universal inputs. Compact 22.5 mm housing. Optional Ethernet/IP network interface. Guard master Safety Relays include units capable of monitoring a broad range of safety devices in a variety of applications. These units can achieve most of the functions safety systems require, helping simplify purchasing and parts management. The family is designed to meet new functional safety standards, such as EN ISO 13849-1 or IEC/EN 62061 and offers key functions to simply installations and system complexity.
