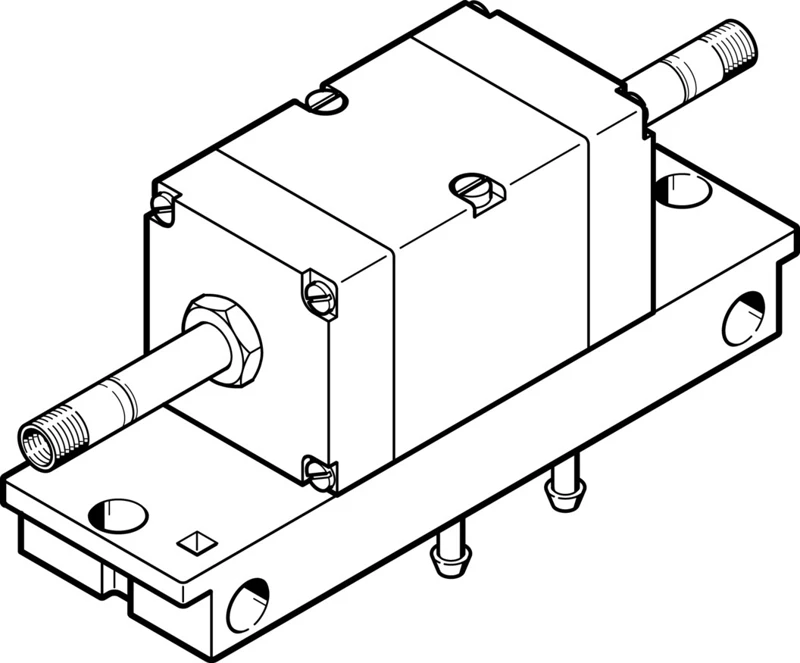

Solenoid valve, JMFH-5-PK-3
SKU: 4447
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves MFH/JMFH, for mounting frame 2N
• Valve function 5/2 double solenoid
• Standard nominal flow rate (standardised to DIN 1343) 105 l/min
• Pneumatic working port PK-3
• Operating pressure 2 bar ... 8 bar
• Design Poppet seat
• Nominal size 2.5 mm
• Sealing principle Soft
• Symbol 00995753
• Switching time reversal 13 ms
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
• LABS (PWIS) conformity VDMA24364-B1/B2-L
Buy currently uses Select Automation shop pricing and checkout.
Specifications
• Solenoid valves MFH/JMFH, for mounting frame 2N
• Valve function 5/2 double solenoid
• Standard nominal flow rate (standardised to DIN 1343) 105 l/min
• Pneumatic working port PK-3
• Operating pressure 2 bar ... 8 bar
• Design Poppet seat
• Nominal size 2.5 mm
• Sealing principle Soft
• Symbol 00995753
• Switching time reversal 13 ms
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
• LABS (PWIS) conformity VDMA24364-B1/B2-L
