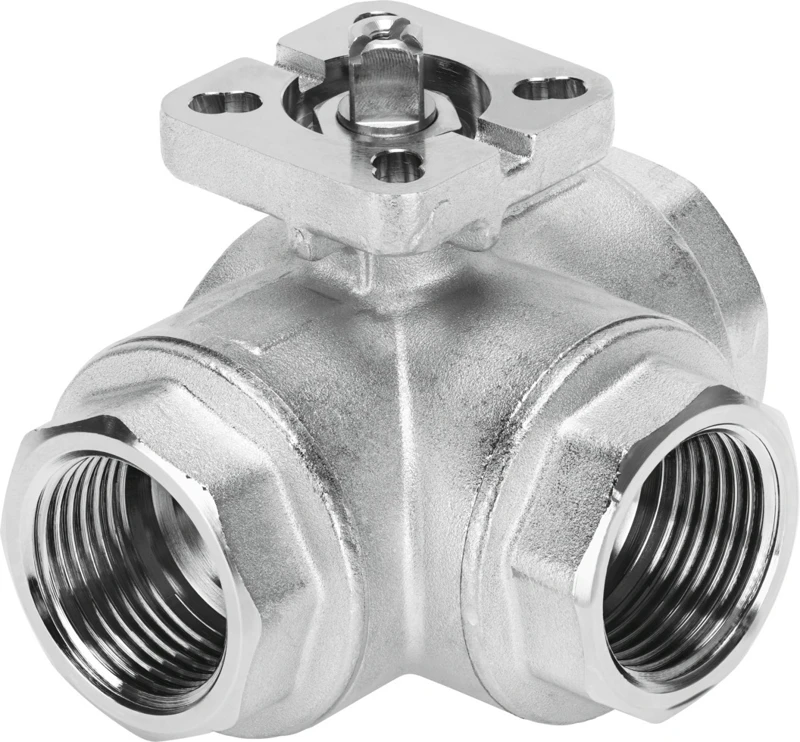

Ball valve, VZBM-1-RP-40-F-3T-F0304-B2B3
SKU: 4451857
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Ball valves VZBM, 3-way
• Design 3-way ball valve, T-hole
• Type of actuation Mechanical
• Sealing principle Soft
• Mounting position optional
• Type of mounting In-line installation
• Connection Process valve Rp1
• Switching position indicator Slot direction = flow direction
• Flange hole pattern F03, F04
• Inside diameter 25 mm
• Nominal size DN 25
• Valve function 3/2
• Flow direction Reversible
Buy currently uses Select Automation shop pricing and checkout.
Ball valve VZBM
• 2- or 3-way ball valve VZBM made from brass with L and T holes.
• VZBM can be actuated automatically or using a hand lever.
• Brass design
• Pipe thread to EN 10226-1
