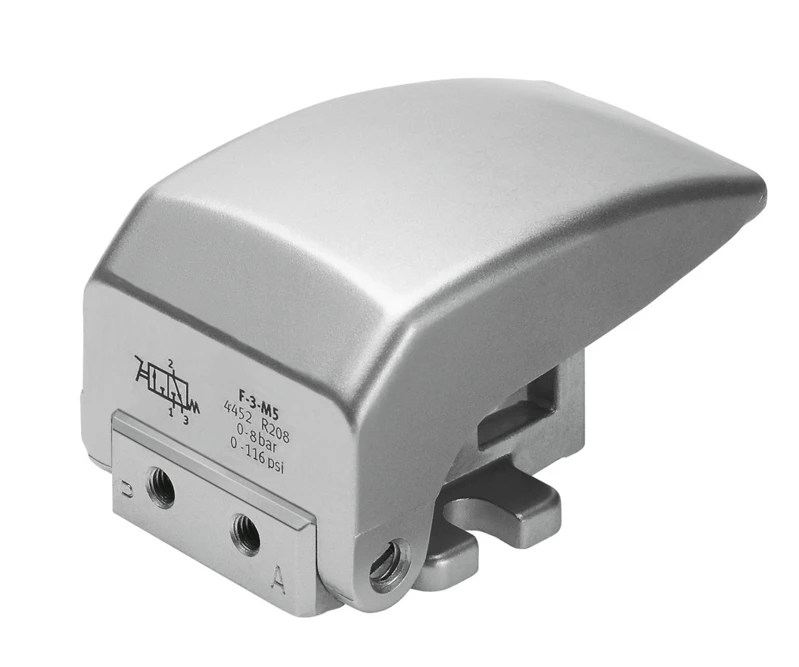

Pushbutton valve, F-3-M5

Specifications • Manually operated valves, Pushbutton valve • Valve function 3/2-way, closed, monostable • Standard nominal flow rate (standardised to DIN 1343) 80 l/min • Pneumatic working port M5 • Operating pressure -0.9 bar ... 8 bar • Type of reset Mechanical spring • Type of piloting Direct • Symbol 00991101 • LABS (PWIS) conformity VDMA24364-B1/B2-L • Product weight 235 g • Pneumatic connection, port 1 M5 • Pneumatic connection, port 2 M5 • Pneumatic connection, port 3 M5
