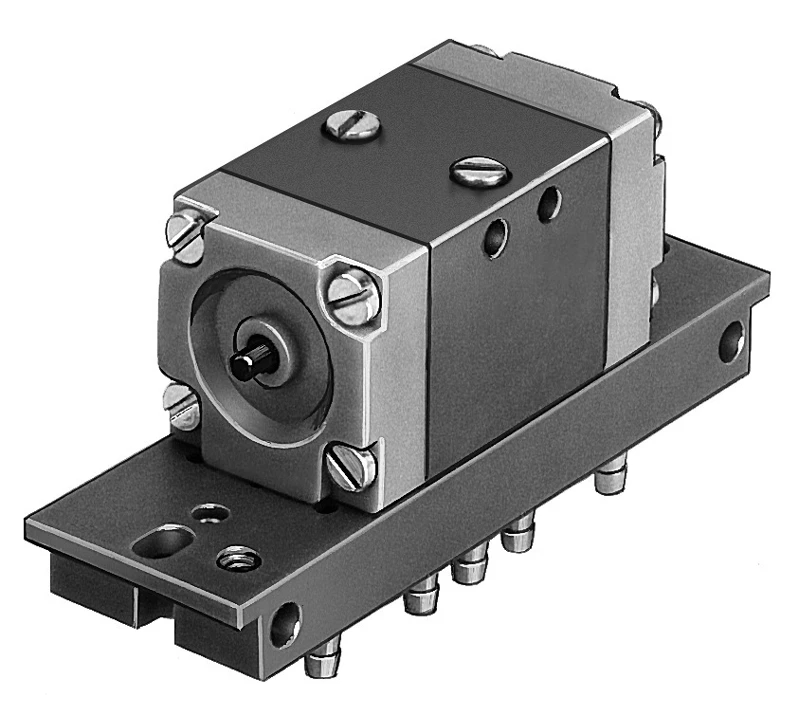

Pneumatic valve, VL-5-PK-3

Specifications • Pneumatic valves VL/J, for mounting frame 2N • Valve function 5/2-way, monostable • Standard nominal flow rate (standardised to DIN 1343) 105 l/min • Pneumatic working port PK-3 • Operating pressure 1.5 bar ... 8 bar • Design Poppet seat • Nominal size 2.5 mm • Symbol 00991391 • Switching time off 22 ms • Switching time on 15 ms • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • LABS (PWIS) conformity VDMA24364-B1/B2-L
