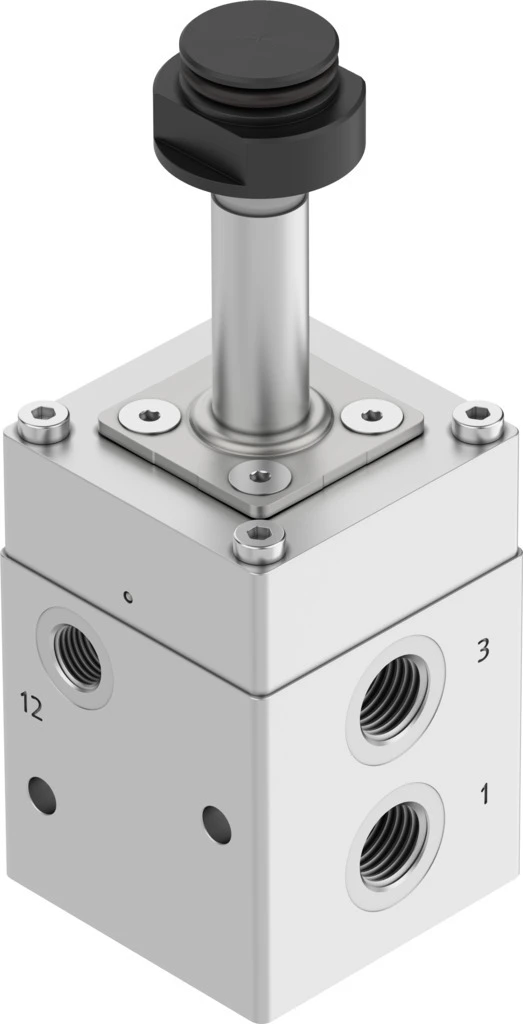

Valve, VOFC-LT-M32C-MC-N14-F19
SKU: 4514742
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Basic valves VOFC-LT ... F19/F19A
• Valve function 3/2-way, closed, monostable
• Type of actuation Electric
• Construction width 51 mm
• Standard nominal flow rate (standardised to DIN 1343) 703 l/min
• Pneumatic working port 1/4 NPT
• Operating pressure 0.1 MPa ... 0.8 MPa
• Operating pressure 1 bar ... 8 bar
• Operating pressure 14.5 psi ... 116 psi
• Design Piloted piston poppet valve
• Type of reset Mechanical spring
• Degree of protection IP65
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve VOFC
• Indirectly controlled pilot valve for particularly demanding operating conditions.
• Redundant version for safety systems up to SIL3.
• Suitable for process automation in the chemical and petrochemical industries
• Suitable for outdoor use under harsh ambient conditions
• Especially suitable for quarter turn actuators thanks to NAMUR flange pattern
• Valve can switch between internal and external pilot air
• Variants with safety functions
• Variants to EU Explosion Protection Directive (ATEX)
