One-way flow control valve, GRF-PK-3
SKU: 4565
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• One-way flow control valves GRF, for mounting frame 2N
• Valve function One-way flow control function
• Pneumatic connection, port 1 PK-3
• Pneumatic connection, port 2 PK-3
• Adjustment component Knurled screw
• Type of mounting With through-hole
• Standard nominal flow rate in flow control direction 45 l/min
• Standard nominal flow rate in blocked direction 45 l/min
• Operating pressure 0.5 bar ... 8 bar
• Ambient temperature -10 °C ... 60 °C
• Material housing Wrought aluminium alloy
• Mounting position optional
Buy currently uses Select Automation shop pricing and checkout.

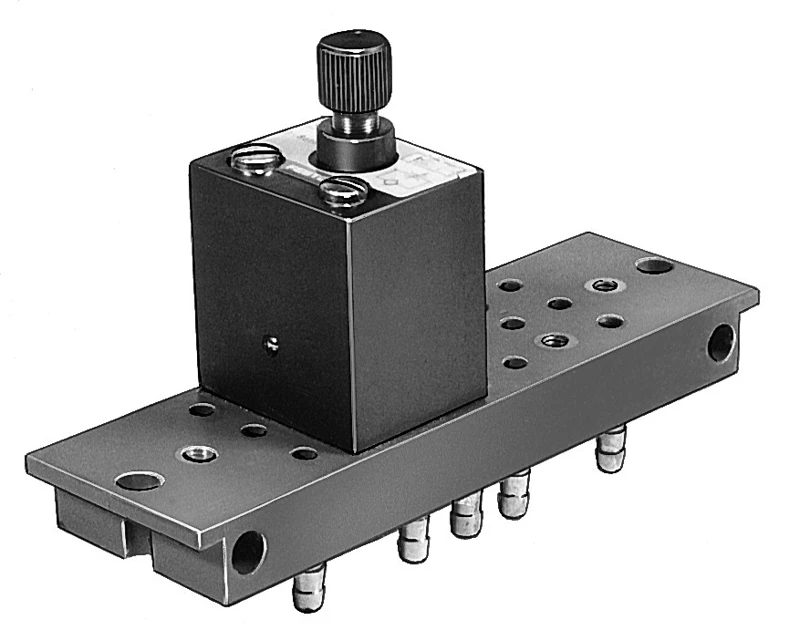

One-way flow control valve, M5 compact system GRF
• Shut-off/flow control valve on adapter plate for mounting frame 2N.
• Complete system offering control components with all the functions required for pneumatic sequence control
• For control cabinet installation
• Fast replacement of components
