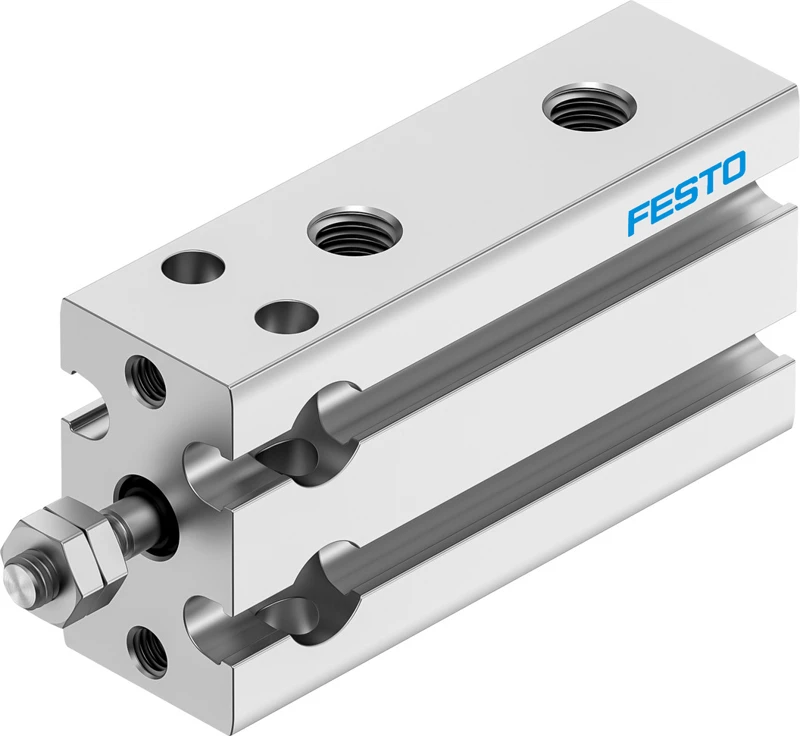

Compact cylinder, DPDM-...-6- -
SKU: 4674228
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Compact cylinder DPDM, multimount
• Stroke 5 mm ... 30 mm
• Piston diameter 6 mm
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Mode of operation Double-acting, Pushing, Single-acting, Pulling
• Design Piston, Piston rod, Profile barrel
• Position detection Via proximity switch
• Variants: Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. Through piston rod, Piston rod at one end
Buy currently uses Select Automation shop pricing and checkout.
Compact cylinder DPDM, multimount
• Double- and single-acting versions
• With and without protection against rotation
• Easy to interchange compared to the compact cylinder DMM
• Simple to mount thanks to a range of mounting interfaces
• Optional: heat-resistant up to 120 °C
• Comparison of compact cylinder DMM and compact cylinder DPDM: All mounting interfaces of the compact cylinder DPDM are compatible with those of the compact cylinder DMM. Compared to the DMM, however, the DPDM is noticeably shorter, giving a lower product weight for the same functionality
