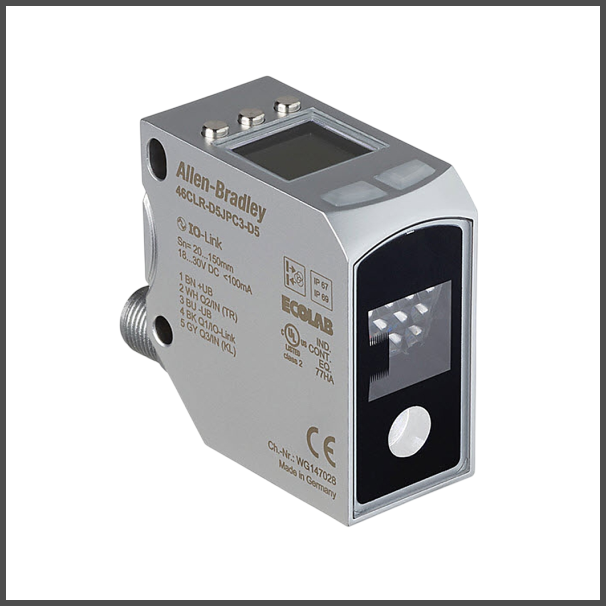

True Color Sensor

Specifications: Sensing Type: Diffuse Light Source: White LED Output Mode: Light and Dark Operate Output Type: Auto PNP or NPN Adjustments: Push Button - Selectable PNP or NPN Sensing Range: 18...32 mm Model: Glare Suppression Connection Type: 5-pin M 12 Integral QD IO Link Enabled: Yes.   Color Sight™ True Color 46CLR Three models to address your needs: – Glare suppression – Small spot size (for small object detection) – Long range. Internally stores up to seven colors in color match mode and unlimited colors by using IO-Link when connected to CompactLogix™. Advanced, High-Performance Color Sensing. The 46CLR was designed to perform the sensing operations commonly found in the automotive, food and beverage, pharmaceutical, and plastics, among other industries. The 46CLR color sensing solution features patent-pending distance correction technology that confirms consistent color detection at ranges up to 65 mm. Additional features include internal storage of up to seven colors and nine adjustable tolerance levels for optimal application flexibility.
