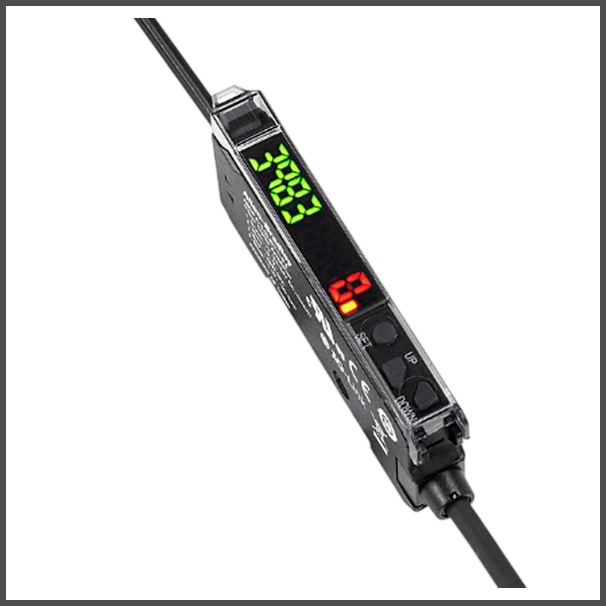

Dual Display Fiber Optic Amplifier

Specifications: Amplifier Aperture Sensor Size: 2.2 mm Small Aperture. Light Source: Visible Red LED. Output Mode: Selectable Light or Dark Operate. Output Type: Selectable PNP or NPN. Response Time: Selectable Response Time. Sensitivity Adjustment: Push Button. Sensing Range: Depends on the Fiber Optic Cable. Connection Types: 4-pin M12 QD on 150 mm pigtail. Operating Voltage: 12...24V DC. IO-Link Enabled: Yes.   DIN Rail Fiber Optic Amplifier 46DFA Output Mode: Programmable complementary light operate and dark operate. Output Type: Programmable PNP or NPN (both outputs). Response Time: Programmable 50 µs, 500 µs, 4 MS, 32 MS (500 µs default). ECO display mode reduces power consumption by 25%. Teachable LED intensity for reliable sensing of clear or transparent objects. Fast, programmable response speeds. Push button selectable PNP and NPN output using. Two high-visibility displays. Crosstalk protection. Built-in totalizer. Sensing for Space-critical Applications. Ideal for sensing small objects, fiber optic cables can be mounted in locations that would otherwise be inaccessible to photoelectric sensors. Other characteristics/advantages of fiber optic sensors include: - Some glass fiber optic tips can withstand high temperatures [up to 482 °C (900 °F)] - Withstand extreme shock and vibration - Often have the fastest response times - Immunity to electrical interference (EMI, RFI).
