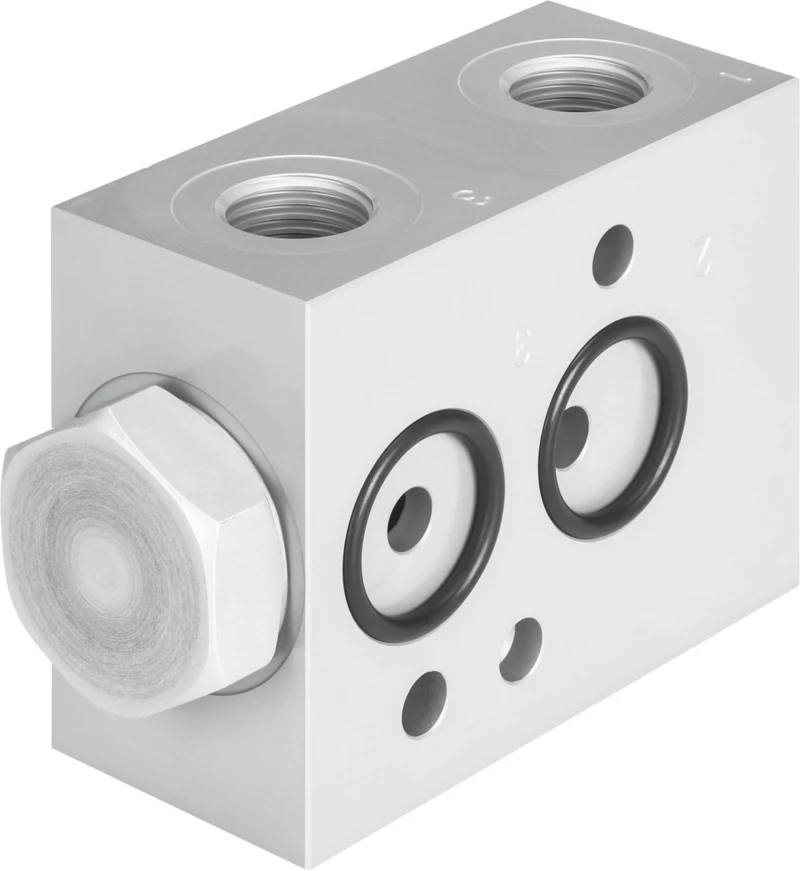

Sub-base, VABS-S7-BE-B-N14-V14

Specifications • Valve series VOFC • Accessories, Sub-base VABS • Mounting position optional • Pilot air supply Internal • Operating pressure 0.2 MPa ... 0.8 MPa • Operating pressure 2 bar ... 8 bar • Flow rate Kv pressurisation 2.2 m³/h • Flow rate Kv exhaust 8.6 m³/h • Explosion protection Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) • Operating medium Compressed air to ISO 8573-1:2010 [-:-:-] • Corrosion resistance class CRC 4 - Very high corrosion stress • LABS (PWIS) conformity VDMA24364 zone III • Degree of protection IP65 • Product weight 250 g • Type of mounting With through-hole • Pneumatic connection, port 1 1/4 NPT
