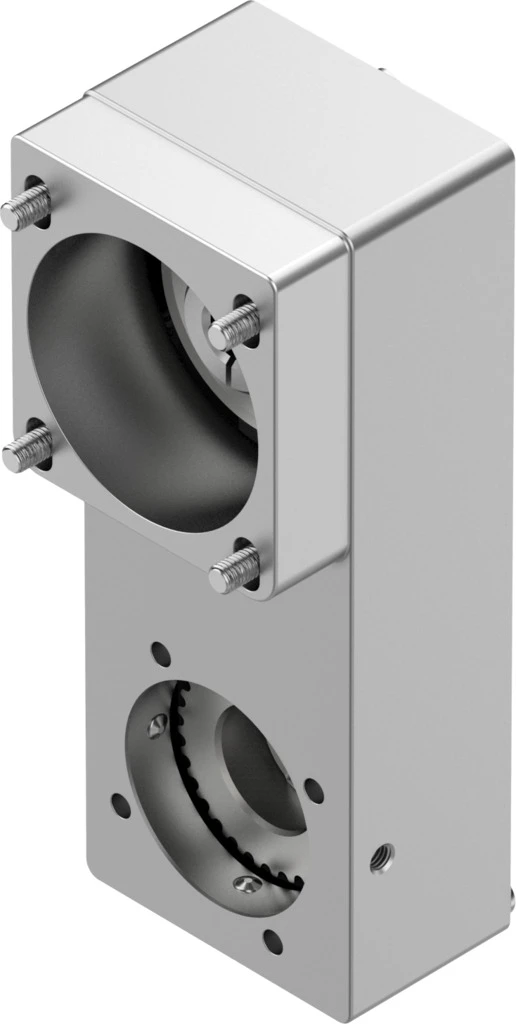

Parallel kit, EAMM-U-30-V20-28A-44

Specifications • Parallel kits EAMM-U-...-V/T • Permissible axis/motor combinations with electric cylinder EPCC • Permissible axis/motor combinations with mini slide EGSC-BS • Size 30 • Centre-to-centre distance 44 mm • Mounting position optional • Gear unit ratio 1:1 • Max. rotational speed 3000 rpm • LABS (PWIS) conformity VDMA24364 zone III • Storage temperature -20 °C ... 60 °C • Relative air humidity 0 - 95% • Degree of protection IP40 • Ambient temperature 0 °C ... 50 °C • Mass moment of inertia 2.11 kgmm² • Frictional torque independent of load 0.015 Nm • Transmittable torque 0.05 Nm • Product weight 97 g • Interface code, actuator V20 • Interface code, motor in 28A • Note on materials RoHS-compliant
