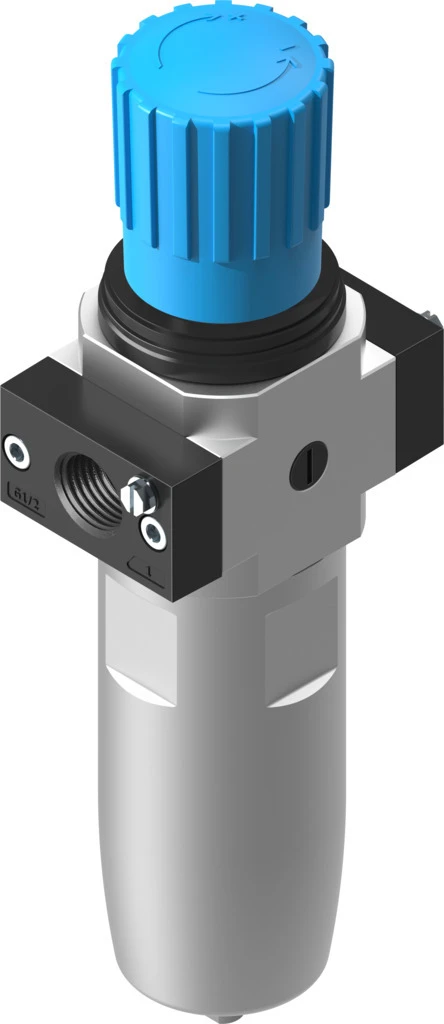

Filter regulator, LFR-1/2-D-16-5M-O-MIDI-T18-EX4
SKU: 4772770
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Filter regulator LFR
• Size Midi
• Series D
• Actuator lock Rotary knob with detent
• Mounting position Vertical +/-5°
• Grade of filtration 5 µm
• Condensate drain Manually rotating
• Design Filter regulator without pressure gauge
• Max. condensate volume 42 ml
• Bowl guard Integrated as metal bowl
• Symbol 00991586
• Pressure gauge (ANALOG) or Pressure display (DIGITAL) Prepared for G1/4
• Pneumatic connection, port 1 G1/2
• Standard nominal flow rate (standardised to DIN 1343) 1665 l/min
• Pressure regulation range 0.5 bar - 16 bar
Buy currently uses Select Automation shop pricing and checkout.
Filter regulator LFR
• Sturdy thanks to full metal design
• High corrosion resistance (corrosion resistance class CRC 3 to Festo standard 940 070) and chemical resistance
• Ambient temperature -40 ... +80 °C
• Resistant to UV radiation and corrosive environments
• With or without pressure gauge
• Reliable manual drain
• Energy efficient: excellent leakage values
• Attractive price
• To EU Explosion Protection Directive (ATEX)
• Size: Midi
