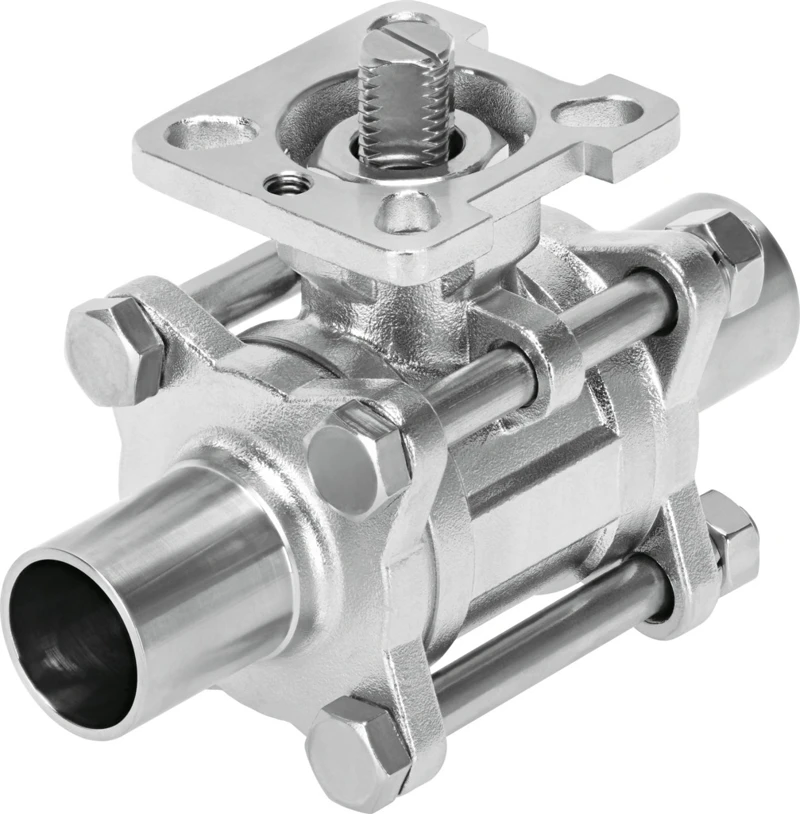

Ball valve, VZBD-1-W3-16-T-2-F0405-V14V14
SKU: 4783597
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Ball valves VZBD, 2-way
• Design 2-way ball valve
• Type of actuation Mechanical
• Sealing principle Soft
• Mounting position optional
• Type of mounting In-line installation
• Connection Process valve Weld-on end to ISO 1127
• Switching position indicator Slot direction = flow direction
• Flange hole pattern F0405
• Inside diameter 29.7 mm
• Nominal size DN 25
• Valve function 2/2
• Flow direction Reversible
• Flow rate Kv 135 m³/h
Buy currently uses Select Automation shop pricing and checkout.
Ball valve VZBD
• The 2-way stainless-steel ball valve is the ideal partner for the pharmaceutical and cosmetics industry.
• Its seals are compliant with FDA standards and it has electropolished surfaces, long welded ends, or clamping sleeves.
• Electropolished surfaces SFV4
• PTFE seal with little dead space
• The high-performance ball valve for the pharmaceutical and cosmetics industry
• FDA-compliant seal to FDA 21 CFR 177.1550
