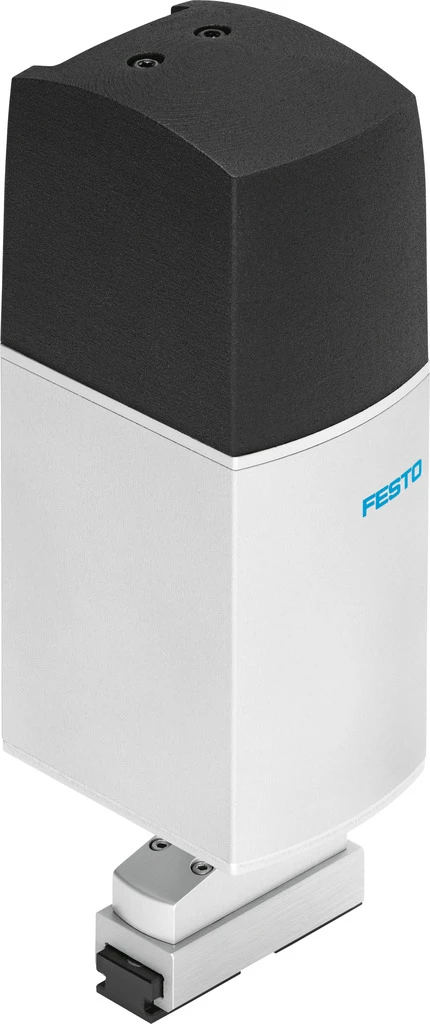

Rotary gripper module, EHMD-40-RE-GE
SKU: 4788875
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Rotary gripper modules EHMD
• Size 40
• Rotation angle Infinite
• Stroke per gripper jaws 5 mm
• Controllable stroke range per gripper jaw 0 mm ... 5 mm
• Reversing backlash theoretical 300 µm
• Stepper angle for complete step 1.8 deg
• Step angle full step, rotation 1.8 deg
• Stepping angle tolerance ±5%
• Step angle tolerance, rotation ±5%
• Number of gripper jaws 2
• Mounting position optional
• Design Electric rotary drive, Electric gripper
Buy currently uses Select Automation shop pricing and checkout.
Rotary gripper module EHMD
• The rotary gripper module EHMD is ideal for gripping and rotating/aligning small objects in laboratory automation or the electronics industry.
• For example, it can be used to effortlessly open various kinds of sample vials.
• Ideal for small objects in laboratory automation
• Infinite electrical rotation and electrical or pneumatic gripping
• Gripping and turning to open and close covers on vials
• Optional: mounting with Z-compensation compensates for the thread pitch of covers on vials during opening and closing
