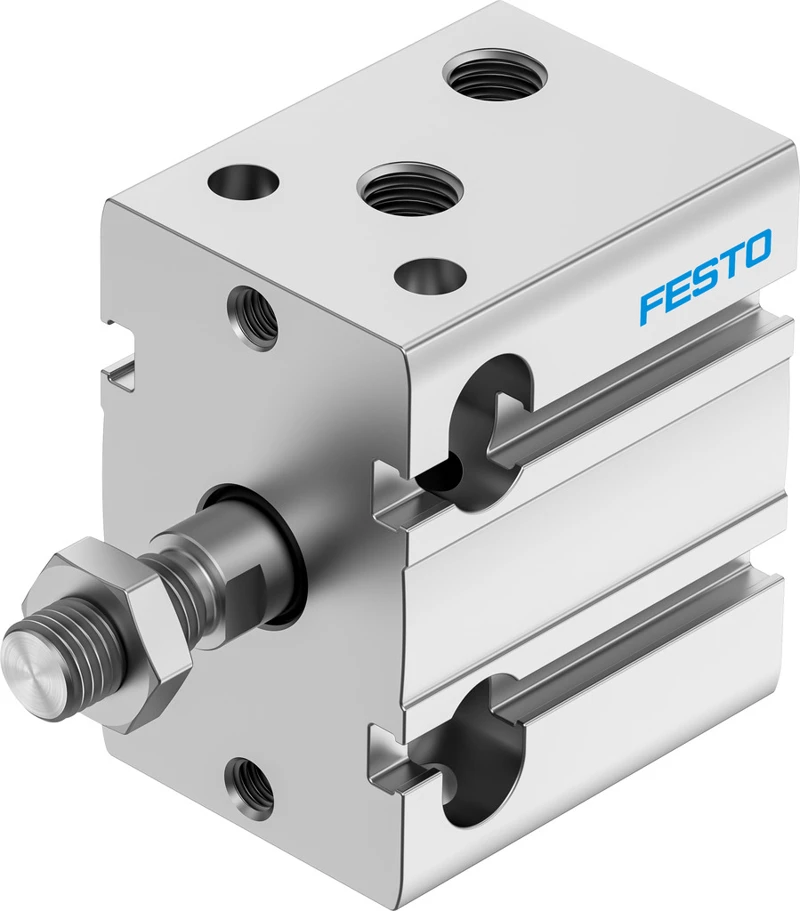

Compact cylinder, DPDM-32-5-PA
SKU: 4828435
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Compact cylinder DPDM, multimount
• Mode of operation Double-acting
• Piston diameter 32 mm
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 483 N
• Stroke 5 mm
• Cushioning Elastic cushioning rings/plates at both ends
Buy currently uses Select Automation shop pricing and checkout.
Compact cylinder DPDM, multimount
• Double- and single-acting versions
• With and without protection against rotation
• Easy to interchange compared to the compact cylinder DMM
• Simple to mount thanks to a range of mounting interfaces
• Optional: heat-resistant up to 120 °C
• Comparison of compact cylinder DMM and compact cylinder DPDM: All mounting interfaces of the compact cylinder DPDM are compatible with those of the compact cylinder DMM. Compared to the DMM, however, the DPDM is noticeably shorter, giving a lower product weight for the same functionality
