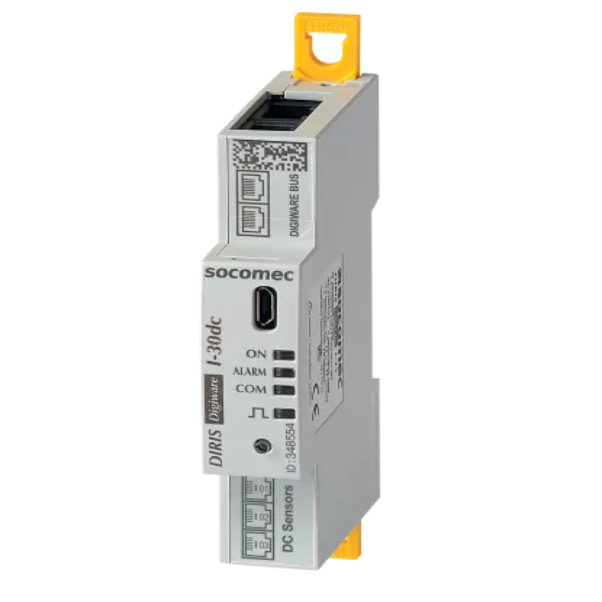

I-30dc CURRENT METERING MODULE
SKU: 4829 0156
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Digiware DIRIS DC:
The best option for metering usage is the multi-circuit power monitoring device, or DIRIS Digiware.
Measuring and keeping an eye on the electrical energy quality for use in commercial and industrial settings.
The load to be measured or the independent current inputs to be monitored are assigned by DC measurement modules.
Measurement for each IDC module of up to three DC circuits.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES DC Digiware.
MODEL I-30DC.
DESCRIPTION Modular current measurement metering module.
CURRENT INPUTS 3.
MODULE WIDTH (MM) 18.
Qualities:
Precision according to IEC 61557-12 standard (Class 0.5).
Implementation in 25% less time than current metering technologies.
Installing current sensors and measuring modules where the load is closest to the source.
Has independent current inputs that allow it to monitor several circuits with a single current measuring module.
Small and adaptable design: ideal for both new and old installations, even panels with limited room.
Modules for measuring DC:
Measuring: ± kWh.
Class 0.5 accuracy in current measuring.
Multiple measurement: Irms, Idc, Udc, and Iripple.
Intuitively connect modules via RJ45 and use RJ12-Molex to connect to existing sensors.
