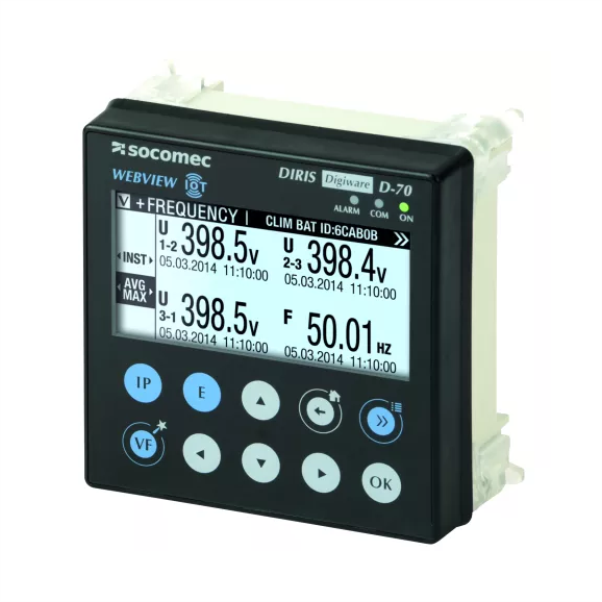

DIRIS D70 DISPLAY+E/NET+WEBSERVER
SKU: 4829 0203
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Digiart DIRIS:
By centralizing measurements from DIRIS Digiware, DIRIS A, DIRIS B, and COUNTIS E devices and making them available over Ethernet, DIRIS D-70 serves as a gateway.
Webview, the "Power & Energy monitoring" embedded web server, allows data visualization.
Allows for the study of consumption data and the real-time monitoring of electrical values.
Measurement and metering devices can be automatically detected and addressed with just a plug and play.
Alarms are automatically sent, measurements and consumption data are automatically recorded and stored.
Modbus connection via Ethernet/RS485 with inbuilt WEBVIEW power monitoring.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES Digiware.
MODEL D-70.
DESCRIPTION Centralisation unit with multi-point display + Ethernet comm / embedded webserver.
MOUNTING Panel.
COMMUNICATION Modbus TCP.
DIMENSIONS (MM) 96 X 96.
Qualities:
Digiware/RS485 inputs.
Ethernet outputs.
Protocols: BACnet, IPSNMP v1, v2, v3, Modbus TCP.
Webserver: Web Server Embedded 32 devices using WEBVIEW-M.
Screen: A graphic display with high quality.
Voltage: Safety Extra Low Voltage, or 24 VDC removal of dangerous voltage on cabinet doors from the electrical source.
