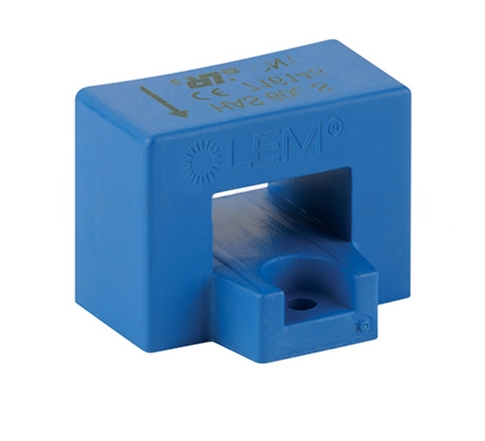

DC SOLID CORE SENSOR 50A
SKU: 4829 0700
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
DIRIS DC Digiware:
The best option for metering consumption is the DIRIS Digiware, a multi-circuit power monitoring device.
Measuring and keeping an eye on the electrical energy quality for use in commercial and industrial settings.
The load to be measured or the independent current inputs to be monitored are assigned by DC measurement modules.
Measurement for each IDC module of up to three DC circuits.
Buy currently uses Select Automation shop pricing and checkout.
Specifications
SERIES DC Digiware.
MODEL DC Sensors.
FRAME SIZE 1.
NOMINAL CURRENT 50A.
DESCRIPTION DC solid-core current sensor.
PITCH (MM) 18.
HOLE SIZE (MM) 10.4 x 20.4.
Features:
Precision according to IEC 61557-12 standard (Class 0.5).
Implementation in 25% less time than current metering technologies.
Installing current sensors and measuring modules where the load is closest to the source.
Has independent current inputs that allow it to monitor several circuits with a single current measuring module.
Small and adaptable design: ideal for both new and old installations, even panels with limited room
Sensors of DC solid-core current:
The Solid TE, Split-core TR, and TF current sensors can be coupled to several kinds of current sensors.
These sensors may be adjusted to fit any kind of installation, whether new and old, and automatically detect the size and kind of the sensor.
