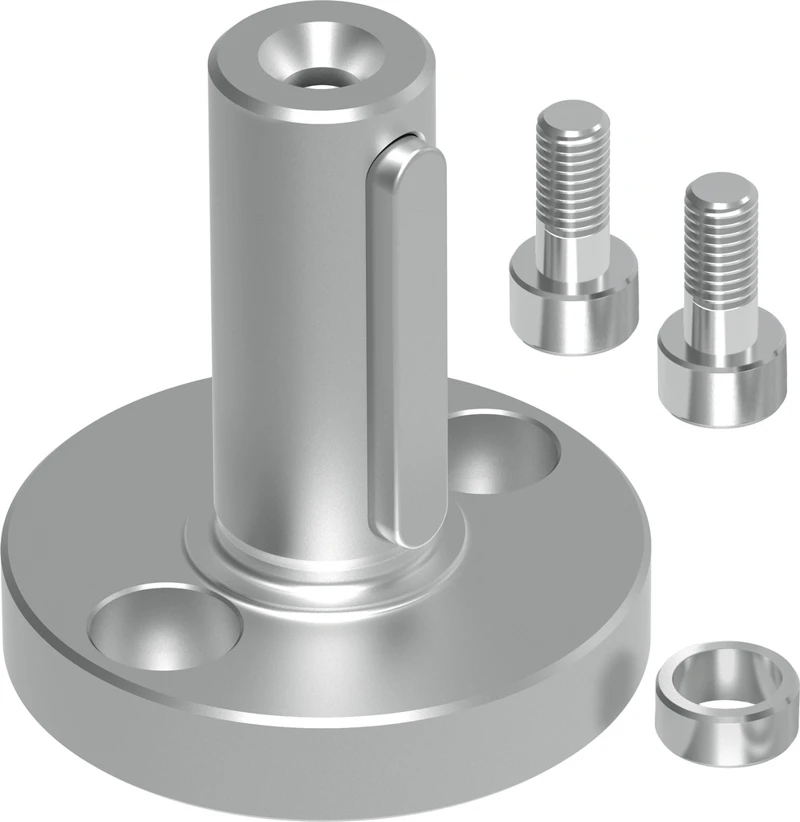

Semi-rotary drives DRRD, Accessories, Drive shaft adapter, DARF-Q11-35/40
SKU: 4835939
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Semi-rotary drives DRRD, twin pistons
• Accessories, Drive shaft adapter
• Size 35, 40
• For piston diameter Ø35, Diameter 40
• Design Drive shaft
• Corrosion resistance class CRC 1 - Low corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Ambient temperature -10 °C ... 60 °C
• Product weight 350 g
• Type of mounting Via through-hole and centring sleeve
• Note on materials RoHS-compliant
• Material screws Nickel-plated steel
Buy currently uses Select Automation shop pricing and checkout.
Semi-rotary drives DRRD, twin pistons
• Rack and pinion principle
• Very high accuracy in the end positions
• Very high load bearing capacity
• Very good axial run-out at the flange shaft
• High mass moments of inertia
• Low backlash and good dynamic response
• Splash-proof design to IP65 based on EN 60529
• Defined interfaces
• Supply port at one end
• Choice of mounting options
• Ideal for use in handling applications
