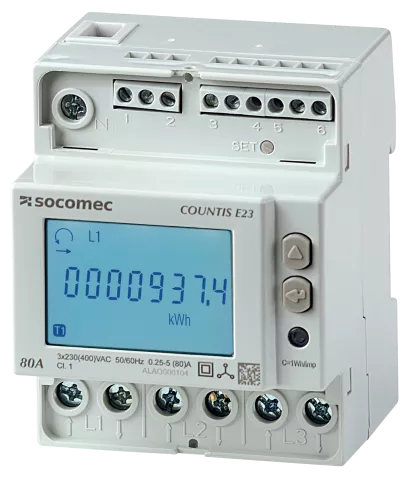

3PH 80A E23 kWh METER
SKU: 4850 3050
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
KWH meters, or COUNTIS active energy meters:
Digital devices known as energy meters are used to measure the amount of electrical energy used in single- and three-phase systems, either directly through a connection or through a current transformer (CT).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES COUNTIS.
MODEL E23.
DESCRIPTION Three phase kwh meter.
CURRENT 80A.
READING Direct.
PHASE Three.
RS485 MODBUS Yes.
DUAL TARIFF Yes.
ACTIVE ENERGY Class 1 (IEC/EN 62053-21) class B (EN 50470).
MOUNTING DIN rail mount.
WIDTH IN 17.5(MM) 4.
Features:
LCD display with backlighting.
Output of pulse: 100 Wh.
Accuracy of measurement: 1%.
Identification of connectivity issues.
Protection against phase/neutral inversion.
Supply voltage range: 230 to 400 VAC.
Class 1 (IEC/EN 62053-21) and class B (EN 50470) represent active energy.
Bidirectional (production and consumption of energy) E27, E33, and E45 exclusively.
