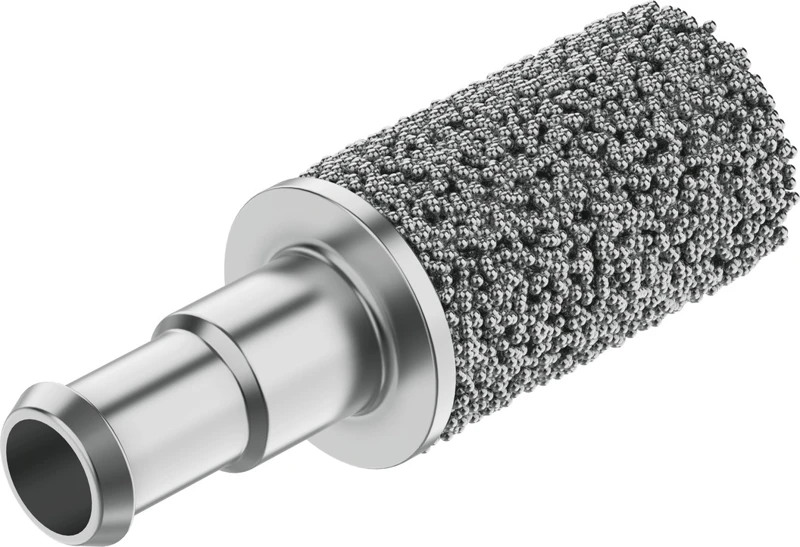

Silencer, U-PK-4

Specifications • Silencer U • Sintered metal version • Mounting position optional • Symbol 00991473 • Operating pressure 0 MPa ... 1 MPa • Operating pressure 0 bar ... 10 bar • Flow rate to atmosphere 580 l/min • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Lubricated operation possible • LABS (PWIS) conformity VDMA24364-B1/B2-L • Sound pressure level 77 dB(A) • Ambient temperature -10 °C ... 70 °C • Product weight 4.1 g • Pneumatic connection PK-4 • Material shock absorber insert Bronze • Material screwed plug Brass • Note on materials RoHS-compliant
