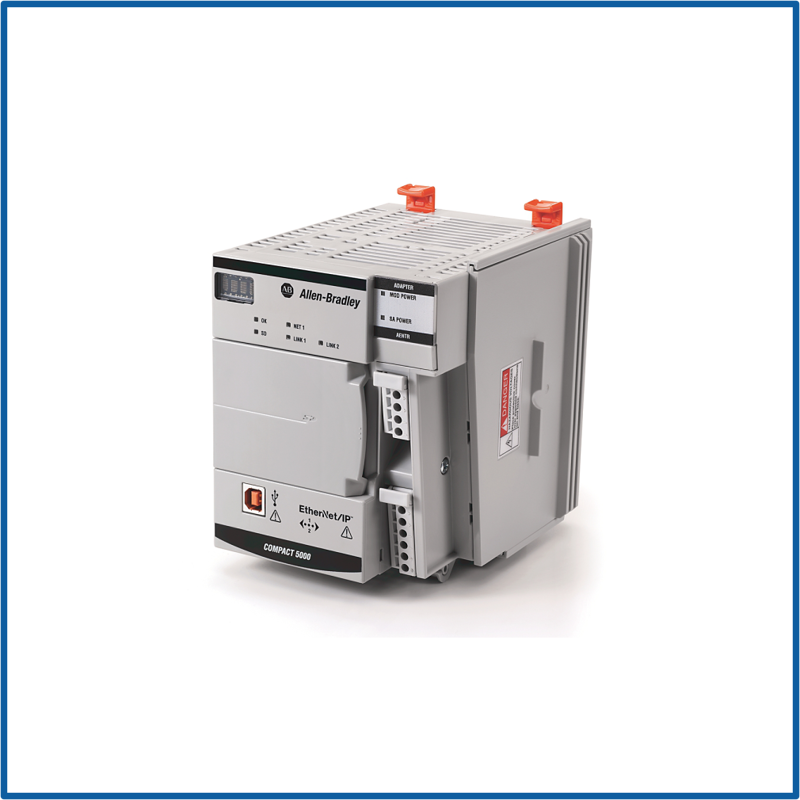

      Compact 5000 EtherNet/IP Adapter

      SKU: 5069-AENTRK

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: The 5069-AENTRK is a high-performance EtherNet/IP adapter for Rockwell Automation's Compact 5000 I/O family. It supports distributed I/O configurations by allowing Compact 5000 I/O modules to communicate with Logix 5000 controllers via EtherNet/IP. This adapter, designed for flexibility and speed, offers modular extension and is excellent for applications that require distant I/O, high-speed data interchange, and reliable industrial networking. Core features: Dual Ethernet ports provide Device Level Ring (DLR), star, and linear topologies for resilient network designs. I/O Expansion: Can accommodate up to 31 Compact 5000 I/O modules in a single local chassis. Conformal Coating: The "K" suffix denotes greater resistance to moisture, dust, and corrosive conditions. Power Input: 24 V DC. Mounting: DIN rail for a compact and secure installation. Controller compatibility: Compatible with Logix 5000 controllers, including the CompactLogix and ControlLogix families. Application Focus: Suitable for distributed control systems, machine-level I/O, and flexible automation configurations.
      5069-AENTRK
      Alternative image 1
      Technical Specifications: Product Type: EtherNet/IP Adapter. Series: Compact 5000 I/O. Model Number: 5069-AENTRK. Network Protocol: EtherNet/IP. Ethernet Ports: 2 × RJ45 (supporting Device Level Ring, Linear, and Star topologies). I/O Capacity: Supports up to 31 local Compact 5000 I/O modules. Power Supply: 24V DC input. Power Consumption: Approximately 3.5 W (verify with datasheet for exact value). Mounting Type: DIN rail. Conformal Coating: Yes (K suffix indicates enhanced protection for harsh environments). Operating Temperature: -20°C to +60°C. Storage Temperature: -40°C to +85°C. Relative Humidity: 5% to 95% non-condensing. Shock Resistance: 30 g operational, 50 g non-operational. Certifications: CE, UL, cUL, RoHS, and others depending on region. Compatible Controllers: Works with Logix 5000 family controllers (e.g., CompactLogix, ControlLogix).
