Compact 5000 Address Reserve Module
SKU: 5069-ARM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

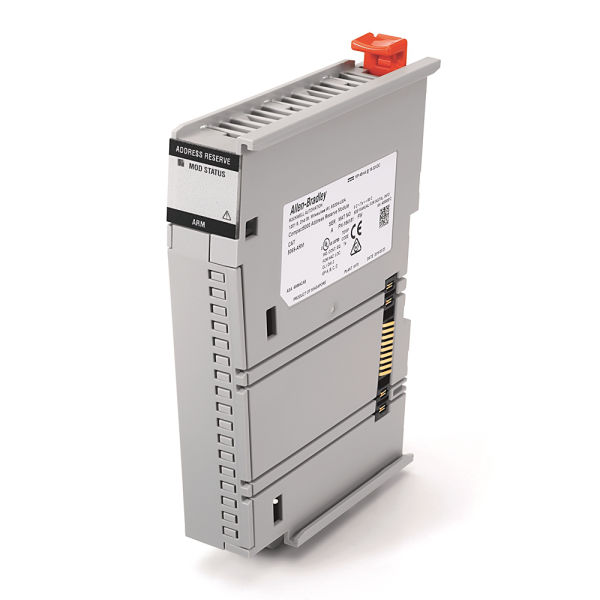

Allen-Bradley's 5069-ARM is an Address Reserve Module in their Compact 5000 I/O line.
Its principal role is to reserve a slot in a CompactLogix or GuardLogix system without carrying out any I/O activities.
This enables system designers to plan for future module expansion or replacement without affecting current slot configurations or needing reprogramming.
It shares the same physical form factor as previous Compact 5000 modules and fits perfectly into the chassis.
It does not consume much power or communicate with the controller, but it is recognized by Studio 5000 Logix Designer, ensuring that the reserved slot remains in the system architecture.
This module is especially useful in modular systems where flexibility and scalability are critical, allowing for clean and predictable I/O layouts.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Function:
Reserves a slot in the Compact 5000 I/O system.
No input/output or communication capabilities.
Used for future expansion or placeholder purposes.
Module Type: Passive placeholder.
Power Consumption: Negligible (does not draw significant current).
Backplane Communication: None.
Status Indicators: None.
Dimensions: Matches standard Compact 5000 I/O modules.
Mounting: DIN rail or panel mount via Compact 5000 chassis.
System Integration:
Compatible Platforms:
CompactLogix 5380 controllers.
GuardLogix 5380 controllers.
5069-AENTR EtherNet/IP adapter.
Software Recognition:
Identified in Studio 5000 Logix Designer.
Slot reserved in controller configuration.
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
