Compact 5000 High Speed Counter Module

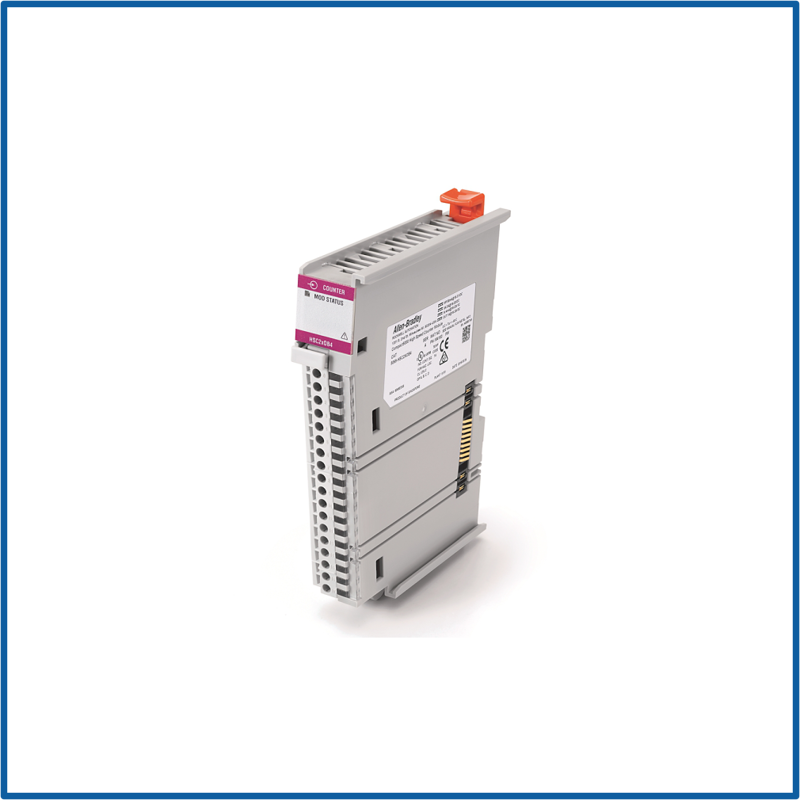

Description: The 5069-HSC2XOB4 is a powerful High-Speed Counter (HSC) module from Rockwell Automation's Compact 5000 I/O line. It's intended to record quick, precise input signals from encoders, sensors, and other pulse-generating devices, regardless of the controller's scan cycle. This makes it excellent for motion control, position tracking, and time-critical automated applications. With two independent counter channels and four digital outputs, the module enables a variety of counting modes, including quadrature, pulse/direction, and up/down. It offers real-time control and feedback for systems such as conveyors, rotary indexing tables, and packaging lines. Key features: Channels: Two high-speed counter inputs. Four digital sourcing outputs. Counting modes: A quadrature encoder. Pulse/direction. Up and down counting. Maximum input frequency: 1 MHz per channel. Output Control: Outputs can be programmed to respond to events. Rapid response independent of controller scan time. separation: Channel-to-channel separation improves reliability. Power supply: 24 volts direct current. Mounting: DIN rail. Programming is done using Studio 5000 Logix Designer. Environmental ratings: Operating Temperature: -20°C to +60°C. Storage Temperature: -40°C to +85°C. Non-condensing humidity ranges between 5% and 95%.
