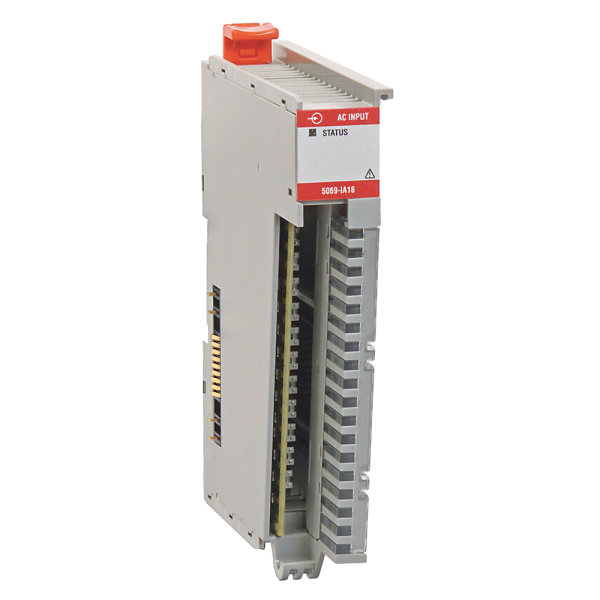

Compact 5000 AC Input Module
SKU: 5069-IA16
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Allen-Bradley's 5069-IA16 is a Compact 5000 AC digital input module designed to interact with AC-powered field devices.
It has 16 input channels for monitoring devices including limit switches, sensors, and push buttons that use 120/240V AC signals.
This module is part of the Compact 5000 I/O platform, which enables high-speed, high-density I/O for CompactLogix 5380 and GuardLogix 5380 controllers.
It's perfect for industrial settings where AC signaling is common, as it provides dependable input detection, variable input delays, and diagnostic capabilities to help discover wiring problems such as open or short circuits.
With its small size, DIN rail mounting, and Studio 5000 Logix Designer connection, the 5069-IA16 supports scalable automation designs and simplifies system design and maintenance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input Channels: 16.
Input Type: AC digital (sink/source configurable).
Voltage Range: 79–264V AC.
Frequency Range: 47–63 Hz.
Input Delay: Configurable (typically <10 ms).
Isolation: Channel-to-backplane and channel-to-channel isolation.
Status Indicators: Individual LEDs for each input channel.
Diagnostics: Open circuit, short circuit, and overvoltage detection.
Mounting: DIN rail via Compact 5000 chassis.
Compatible Controllers: CompactLogix 5380, GuardLogix 5380.
Configuration Software: Studio 5000 Logix Designer.
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
