Compact 5000 DC Input Module
SKU: 5069-IB16
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

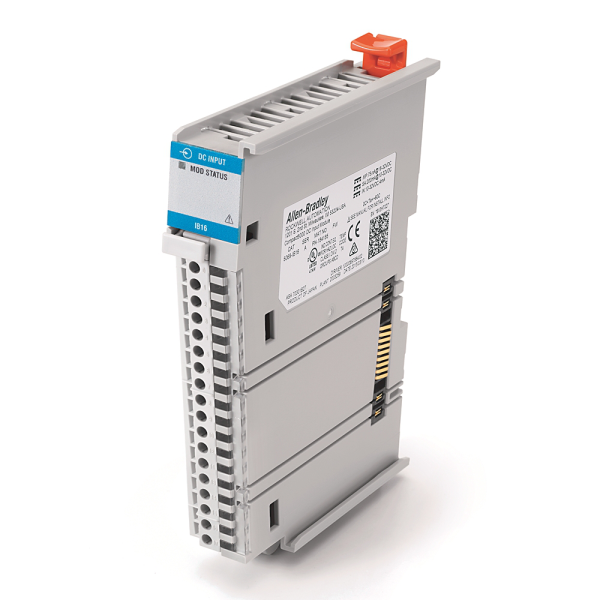

The Allen-Bradley 5069-IB16 is a Compact 5000 DC digital input module that can monitor up to 16 independent 24V DC signals from field devices such sensors, switches, and push buttons.
It is part of the Compact 5000 I/O platform and works smoothly with the CompactLogix 5380 and GuardLogix 5380 controllers.
This module supports both sink and source wiring configurations, has quick input response times, and individual channel status LEDs for easy diagnosis.
It's suited for high-speed, high-density applications that require stable DC signal acquisition.
The 5069-IB16 is setup and operated using Studio 5000 Logix Designer, making it an adaptable and scalable option for modern control systems.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Channels: 16.
Input Type: DC digital (sink or source configurable).
Nominal Voltage: 24V DC.
Voltage Range: 10–30V DC.
Input Delay: Configurable (typically <1 ms).
Input Current: Approx. 2.5 mA per channel at 24V DC.
Isolation:
Channel-to-backplane: Yes.
Channel-to-channel: Yes.
Physical & Mechanical:
Module Width: Standard Compact 5000 form factor.
Mounting: DIN rail via Compact 5000 chassis.
Status Indicators:
Individual LEDs for each input channel.
Module status LED.
System Integration:
Compatible Controllers:
CompactLogix 5380.
GuardLogix 5380.
Configuration Software: Studio 5000 Logix Designer.
Diagnostics:
Open circuit detection.
Short circuit detection.
Overvoltage protection.
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
