Compact 5000 Fast DC Input Module
SKU: 5069-IB16F
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

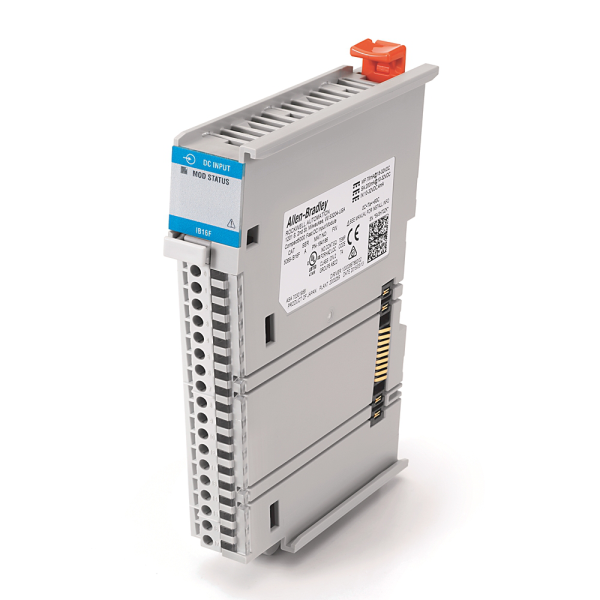

The Allen-Bradley 5069-IB16F is a Compact 5000 Fast DC Input Module designed for high-speed digital signal acquisition in demanding industrial situations.
It has 16 input channels designed to detect 24V DC signals with extremely quick response times, making it excellent for applications like motion control, high-speed sorting, and packing systems that require accurate timing.
Each channel accepts sink or source wire, and the module has individual status LEDs for quick diagnosis.
It also includes built-in fault detection for open, short, and overvoltage conditions.
It is part of the Compact 5000 I/O platform and integrates seamlessly with the CompactLogix 5380 and GuardLogix 5380 controllers. Studio 5000 Logix Designer is used for configuration.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Channels: 16.
Input Type: DC digital (sink/source configurable).
Nominal Voltage: 24V DC.
Voltage Range: 10–30V DC.
Input Delay: Typically, <0.2 ms (fast response).
Input Current: Approx. 2.5 mA per channel at 24V DC.
Isolation:
Channel-to-backplane: Yes.
Channel-to-channel: Yes.
Physical & Mechanical:
Form Factor: Compact 5000 standard module size.
Mounting: DIN rail via Compact 5000 chassis.
Status Indicators:
Individual LEDs for each input channel.
Module status LED.
System Integration:
Compatible Controllers:
CompactLogix 5380.
GuardLogix 5380.
Configuration Software: Studio 5000 Logix Designer.
Diagnostics:
Open circuit detection.
Short circuit detection.
Overvoltage protection.
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
