Compact 5000 DC Input Module

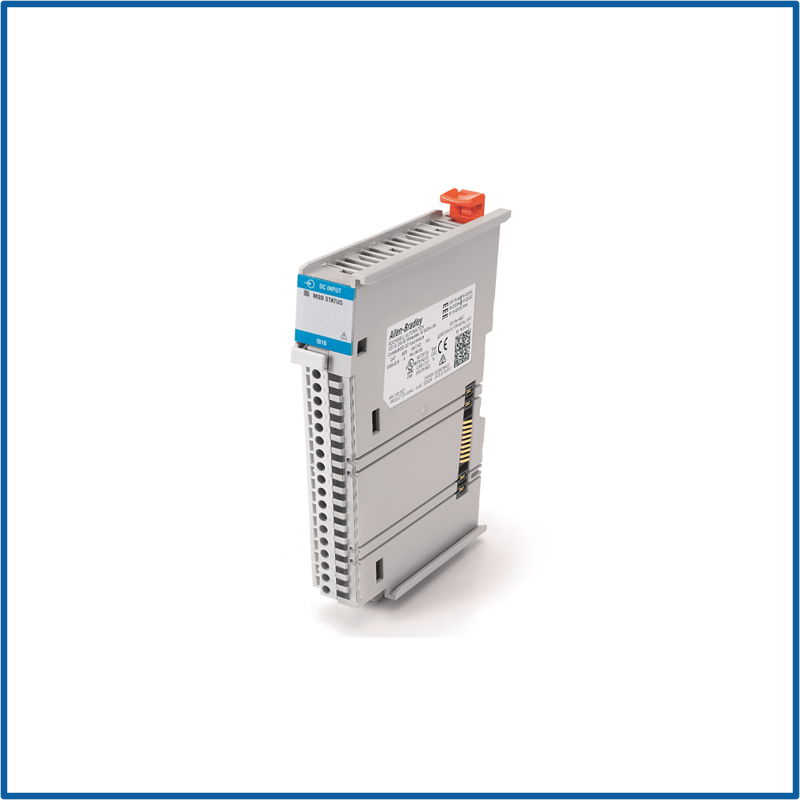

Description: The 5069-IB16K is a 16-channel DC digital input module from Rockwell Automation's Compact 5000 I/O line. It takes input states from field devices such as sensors, switches, and pushbuttons in order to acquire signals at rapid speeds and with reliability. The module accepts 10-30V DC source inputs, making it appropriate for a variety of industrial automation applications. The "K" suffix denotes conformal coating, which protects the module's circuitry from moisture, dust, and corrosive contaminants—ideal for use in severe settings such as food processing, mining, or outdoor installations. Key features: Channels include 16 source DC inputs. Voltage range: 10-30 volts DC. The input type is sourcing (positive logic). Fast Response: Input delays are often less than 1 ms. Yes, conformal coating provides greater protection in harsh environments. Status indicators include individual LEDs for each input channel. Isolation: Channel-to-backplane and group isolation provide field-side safety. Mounting: DIN rail. Power supply: 24 volts direct current. Programming is done using Studio 5000 Logix Designer. Environmental ratings: Operating Temperature: -20°C to +60°C. Storage Temperature: -40°C to +85°C. Non-condensing humidity ranges between 5% and 95%.
